PNSC-2-12

REQUEST MORE INFO >

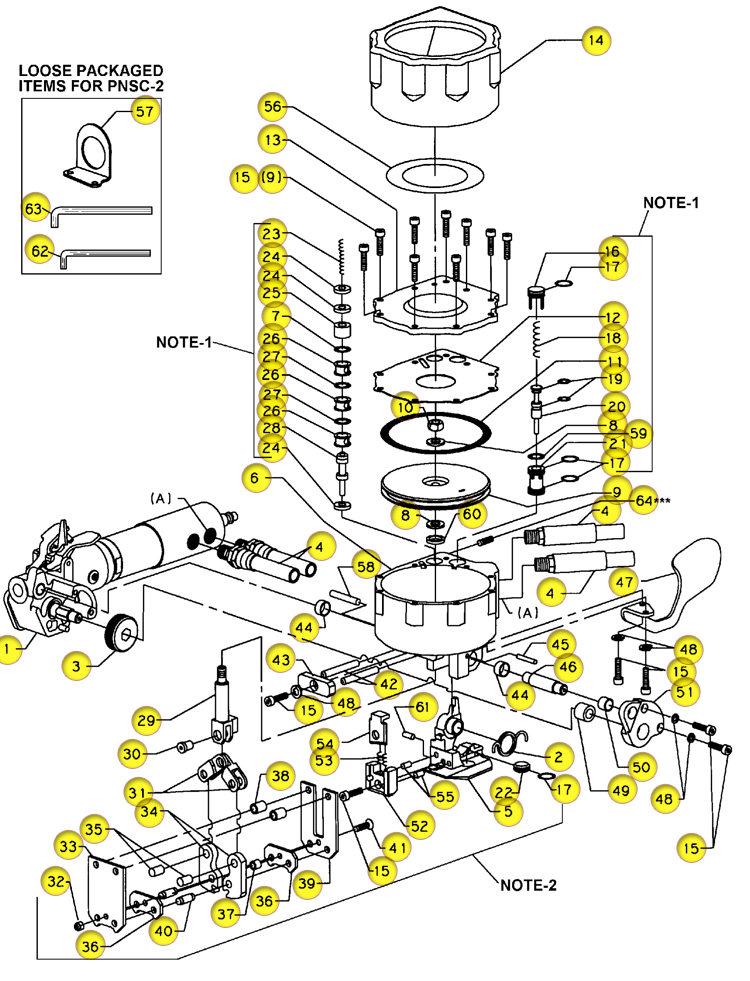

Part #	SKU	Product Name
1	281389	Pnsc2 Tension Unit
2	4057	Energizing Spring
3	4056	Feed Wheel
4	22445	Air Hose Assembly
5	4081	Foot
6	22308	Cylinder
7	1204	O-Ring 112
8	224466	Flat Washer .625Od X .320Id X .020
9	22322	Piston
10	20604	Flexloc Nut, M8 (W/ Nylon)
11	1297	O-Ring
12	4054	Gasket
13	22311	Cylinder Cover
14	22312	Protective Cover
15	579	Shcs M5 X 16
16	4058	Tension Valve Spacer
18	22467	Tension Valve Spring Lc-032E-11
19	1209	O Ring 7/32 X 11/32 X 1/16
20	4049	Tension Valve Stem
21	4048	Tension Valve Sleeve
22	4059	Wear Plug
23	1279	Valve Spring
24	1281	Seal
25	1278	Sleeve Spacer
26	1276	Valve Sleeve
27	387	O-Ring 111
28	1277	Valve Stem
29	22313	Ram
30	22314	Ram Pin
31	22462	Jaw Link
32	21830	Lock Nut M5 Poly Insert
33	1286	Front Plate
34	4053	Jaw
35	1283	Link Pin
36	1264	Notcher
37	1265	Notcher Spacer
38	1266	Side Plate Spacer
39	1268	Rear Plate
40	1267	Notcher Pin
41	22461	Fshcs M5 X 25
42	22446	Sealer Pin
43	22447	Keeper
44	22448	Bushing Garlock 12Mm Id X 4Mm Od X 8Mm Lg
45	22469	?4 X 20 Lg Taper Pin (Din 1472)
46	22321	Pivot Shaft
47	15241	Handle
48	3444	Lockwasher M5
49	4075	Bearing Torrington M-631 3/8 Id X 9/16 Od X 1/2, Cl-End
50	4074	Bearing, Garlock Mb1008Ou, 10Mm Id X 12Mm Od X 8Mm
51	4055	Outer Link
52	22315	Cutter Block
53	4073	Spring Lc-035C-6
54	4060	Angle Cutter
55	22459	?5 X 12 Dowel Pin
56	23079	Warning Label
57	22465	Hanger Bracket
58	22468	M6 X 40 Lg Roll Pin (Din 1481)
60	4083	O-Ring 112 Quattro
61	3024	?4 X 12 Dowel Pin
62	51682	3Mm Hex Key
63	51683	4Mm Hex Key
64	197517	Set Screw, M5 X 12
