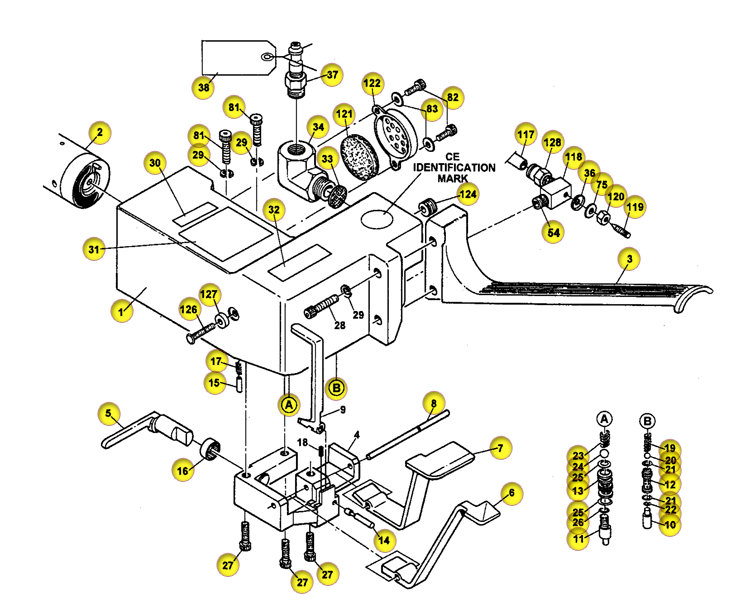

| Part # |
SKU |
Product Name |
Get Quote |
| 1 |
22238 |
Motor Housing |
|
| 2 |
21768 |
Valve Stem |
|
| 3 |
22304 |
Handle |
|
| 5 |
22294 |
Catch Pawl |
|
| 6 |
22232 |
Valve Lever (Sealer) |
|
| 7 |
4040 |
Valve Lever (Tension) |
|
| 8 |
22246 |
Lever Pin |
|
| 9 |
22299 |
Catch Link |
|
| 11 |
20352 |
Dowel Pin |
|
| 13 |
2180 |
M3 Lockwasher (Zinc) |
|
| 13 |
22231 |
Valve Sleeve (Sealer) |
|
| 15 |
21798 |
Catch Pin |
|
| 15 |
22295 |
Spring Socket |
|
| 16 |
2433 |
Needle Bearing, Ina #Hk-1012 |
|
| 18 |
21813 |
Spring Socket |
|
| 19 |
19043 |
M5X30 Soc Hd Cap Screw |
|
| 23 |
19611 |
Socket Head Cap Scrw |
|
| 24 |
21841 |
Lee Spring |
|
| 25 |
1362 |
Bronze Bushing |
|
| 26 |
21843 |
Lee Spring |
|
| 28 |
21829 |
Compression Spring |
|
| 31 |
21824 |
Rubber Ball |
|
| 32 |
21825 |
Rubber Ball 3/8 |
|
| 34 |
18390 |
Street Elbow 1/4" |
|
| 36 |
16415 |
Tag |
|
| 38 |
18896 |
O-Ring |
|
| 46 |
22413 |
Quad Ring |
|
| 46 |
22733 |
Inner Bearing |
|
| 46A |
22734 |
Bushing |
|
| 53 |
22730 |
Base Assy |
|
| 54 |
17121 |
Nipple |
|
| 55 |
22414 |
Cam Shaft |
|
| 56 |
22420 |
Die Cover |
|
| 58 |
39473 |
Die Holder |
|
| 59 |
3438 |
Cutter Holder |
|
| 61 |
3439 |
Cutter Blade |
|
| 62 |
4021 |
Cutter Shim |
|
| 63 |
22230 |
Follower Cam |
|
| 64 |
21814 |
Clutch |
|
| 65 |
21815 |
Detent |
|
| 65 |
22241 |
Guide Plate |
|
| 66 |
22296 |
Strap Guide Inner |
|
| 67 |
2557 |
Clutch Plug |
|
| 68 |
51889 |
Cam |
|
| 69 |
22251 |
Hanger Assy |
|
| 70 |
511 |
Shcs M5 X 12 |
|
| 71 |
22425 |
Punch |
|
| 72 |
22245 |
Strap Guide Front 12 |
|
| 73 |
22422 |
Connector |
|
| 80 |
22724 |
Set Screw (M5X5 Nylon Tip) |
|
| 82 |
21474 |
Shcs, M4 X 6 |
|
| 82 |
21773 |
Bearing Sleeve |
|
| 83 |
2176 |
Split Lock Washer, M4 |
|
| 85 |
3490 |
Spring |
|
| 86 |
19592 |
Set Screw |
|
| 87 |
21806 |
Bearing Cover |
|
| 87 |
22407 |
Bearing |
|
| 88 |
3493 |
Spring |
|
| 89 |
21807 |
Pivot Shaft |
|
| 90 |
22430 |
Outer Link |
|
| 91 |
22423 |
Guide Outer Link |
|
| 92 |
38635 |
Feedwheel |
|
| 94 |
22234 |
Drive Plate |
|
| 95 |
22434 |
Worm |
|
| 96 |
22240 |
Worm Wheel |
|
| 98 |
22239 |
Feedwheel Shaft |
|
| 101 |
21840 |
Needle Bearing |
|
| 102 |
21838 |
Neelde Bearing |
|
| 102 |
22252 |
Pawl |
|
| 103 |
51634 |
Hd Cap Screw |
|
| 103 |
21837 |
Neelde Bearing |
|
| 103 |
2253 |
Warning Sign |
|
| 104 |
21836 |
Inner Ring |
|
| 105 |
21845 |
Seal |
|
| 107 |
1087 |
Ball Bearing |
|
| 107 |
21833 |
Thrust Needle Cage |
|
| 108 |
21816 |
Thrust Washer |
|
| 109 |
22421 |
Adjustment Block |
|
| 110 |
19589 |
O-Ring |
|
| 112 |
1860 |
5/16-18 Hex Nut |
|
| 112 |
19164 |
Flat Hd Socket Cap Screw |
|
| 115 |
1609 |
Adjust Screw |
|
| 116 |
21812 |
Guide Pin |
|
| 117 |
22302 |
Tubing |
|
| 121 |
22305 |
Muffler |
|
| 122 |
22298 |
Muffler Cover |
|
| 122 |
2258 |
Soc Hd Cap Screw |
|
| 125 |
22431 |
Set Screw |
|
| 126 |
39501 |
Adjustment Screw, Slotted Pan Head, M4 X 25 |
|
| 127 |
51859 |
Plug |
|
| 322 |
1243 |
O-Ring, 16 |
|
| 402 |
19036 |
Retaining Ring |
|
