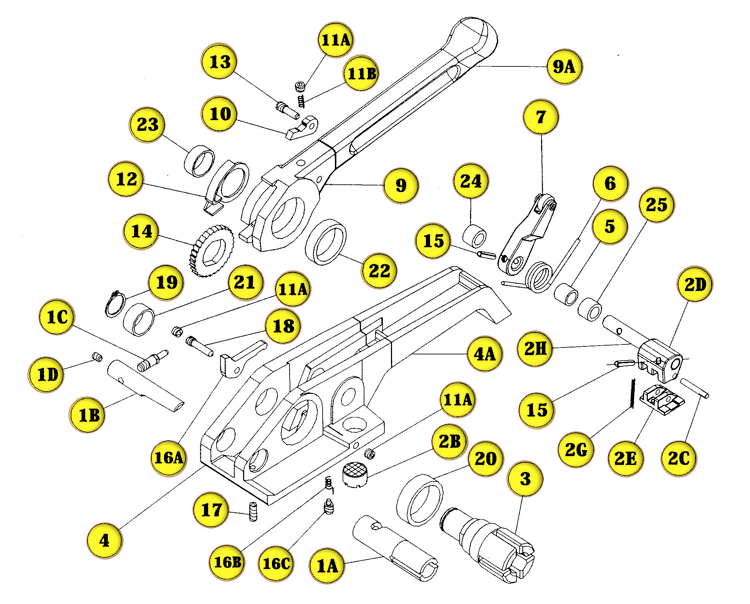

| Part # |
SKU |
Product Name |
Get Quote |
| 1A |
9766 |
Cutter Housing |
|
| 1B |
9767 |
Cutter Blade |
|
| 1C |
9768 |
Cutter Actuating Pin |
|
| 1D |
159620 |
Set Screw |
|
| 2C |
15593 |
Gripper Foot Pin |
|
| 2D |
60307 |
Gripper Foot Housing |
|
| 2E |
40489 |
Gripper Foot |
|
| 2G |
15592 |
Gripper Spring |
|
| 2H |
60330 |
Gripper Pin |
|
| 3 |
60308 |
Windlass |
|
| 4 |
9772 |
Base - Includes Finishing |
|
| 4A |
60309 |
Plastic Base Cover |
|
| 5 |
60310 |
Spacer |
|
| 6 |
8702 |
Release Lever Spring |
|
| 8 |
60311 |
Release Lever (Includes Roller & Machined Rivet) |
|
| 9 |
9775 |
Handle |
|
| 9A |
60313 |
Handle Grip - Red |
|
| 10 |
9753 |
Handle Pawl |
|
| 11A |
9754 |
Set Screw |
|
| 11B |
9755 |
Spring |
|
| 12 |
9756 |
Cutter Actuator |
|
| 13 |
9757 |
Handle Set Screw |
|
| 14 |
9758 |
Ratchet Gear |
|
| 15 |
9759 |
Roll Pin |
|
| 16A |
9760 |
Body Pawl |
|
| 16B |
9761 |
Bottom Pawl Spring |
|
| 16C |
9762 |
Set Screw |
|
| 17 |
9763 |
Set Screw Cutter Housing |
|
| 18 |
9764 |
Body Pawl Retaining Screw |
|
| 19 |
9765 |
Circlip - Windlass |
|
| 20 |
60314 |
Large Body Bushing |
|
| 21 |
60315 |
Small Body Bushing |
|
| 22 |
40296 |
Large Brass Handle Bushing |
|
| 23 |
60316 |
Small Brass Handle Bushing |
|
| 25 |
188374 |
Gripper Foot Bearing |
|
