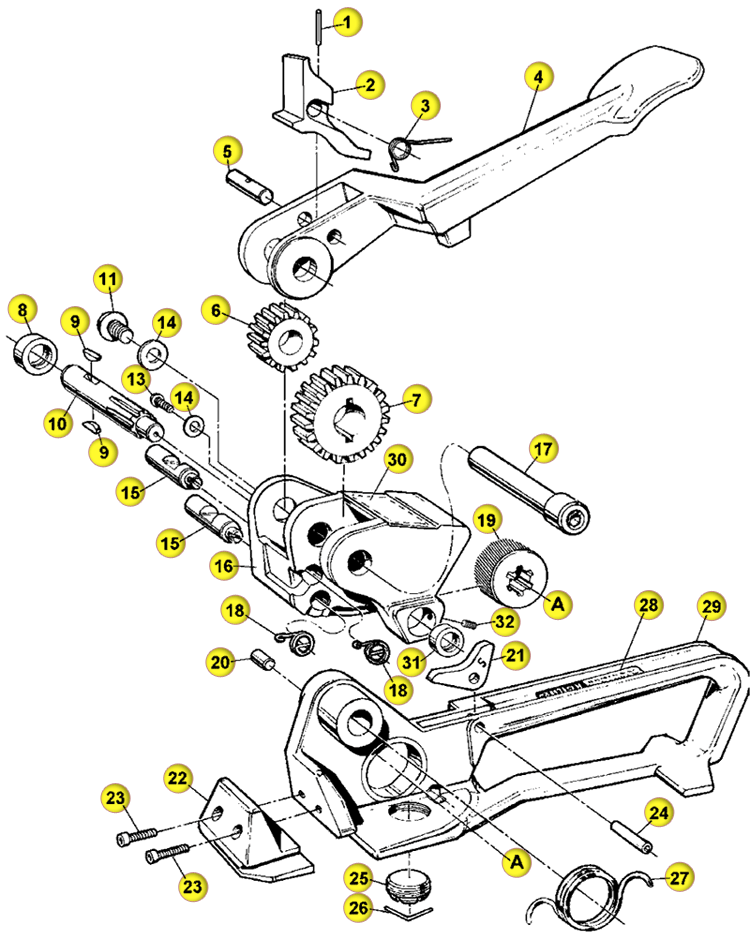

Part # SKU Product Name Get Quote
1 801 Roll Pin, .093 X 1.000
2 1036 Drive Pawl
2 1039 Lift Arm
3 1045 Drive Pawl Spring
4 1033 Tension Handle
5 1044 Pawl Pin
6 1038 Pinion Gear
7 1037 Tension Gear
8 1043 Bushing
9 1296 Woodruff Key, 403
10 1046 Feedwheel Shaft
11 85 Bhcs, 5/16-24, X /8
12 14914 Caution Plate
12 202 Washer, 5/16 Sae
13 1727 Bhscs, 10-24 X 3/8
14 1293 Washer, 3/16 Sae
15 1041 Hold Pawl
16 39345 Gear Housing
16 1034 Gear Housing (Rep 017906)
17 17326 Pivot Pin
18 1042 Hold Pawl Spring
19 1047 Feedwheel
20 49 Strap Guide Pin
22 1035 Braker Nose
22 141894 Breaker Nose
23 169 Schs, 10-24 X 5/8
24 242 Roll Pin, 3/16 X 3/4
25 424 Wear Plug
26 48 Lock Wire
27 1040 Base Spring
29 1032 Base Spring
30 1055 Nameplate
31 197562 Bushing
32 1207 Set Screw
