SCM-12

REQUEST MORE INFO >

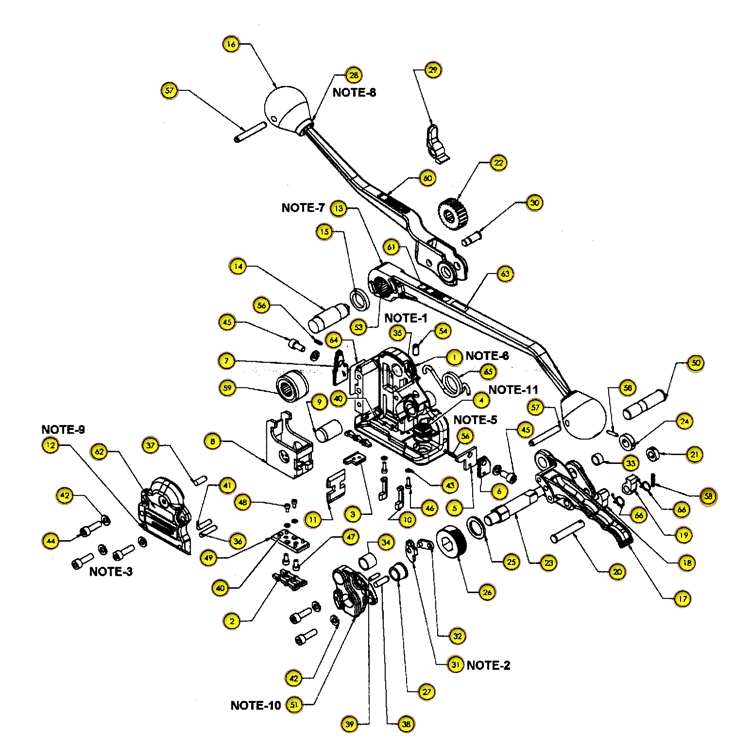

Part #	SKU	Product Name
1	98845	Base
2	84743	Back Guide
3	49899	Front Guide
4	513	Screw Sh M6X12
6	252	1/8 X 3/8 Roll Pin
7	51862	Lifter
8	83539	Locking Plate
9	19446	Shss M6X12
10	51885	Energizing Spring
11	20352	Dowel Pin
12	19691	Soc Hd Cap Screw
13	2180	M3 Lockwasher (Zinc)
14	39522	Punch
17	51863	Die Support
18	39506	Cutter
19	51864	Cutter Anvil
20	49940	Die Holder
21	49895	Link
21	83540	Cam Roller Pin
22	49896	Outer Guide
22	53389	Washer
23	51866	Cam Roller
24	197579	Needle Roller
25	151396	Ssealer Cover
27	18968	5X24 Dowel Pin
29	60789	Dowel Pin 6 X 16
30	85090	Feedwheel Cover Addembly
31	51901	Du Bushing
32	51903	Garlock Du Bushing 09Du06 9 1/6 X 3/8
33	19479	Dowel Pin
35	49897	Clutch Plug
35	157316	M3 X 6 Shcs
37	49898	Feedwheel Cover Addembly
38	51902	Feedwheel Spacer
40	197565	Feedwheel Support
41	83541	Feedwheel Shaft
41	107528	6X20 Dowel Pin
42	85083	Holding Pawl Pin
43	51887	Pivot Pin
44	51900	Garlock Du Bushing 06Du04 3/8 X 1/4
45	99	Long Ret Pawl
47	113	Ret Pawl Spr
49	84556	Tension Handle Assembly
50	107	Handle Pawl
51	51886	Handle Pawl Pin
52	109	Handle Pawl Spr
53	51865	Ratchet
54	84555	Cam/Handle Assy (Note-3)
57	51899	Cam Spacer (Note-3)
58	22456	Dowel Pin
59	60463	Eccentric Shaft
61	50024	Dowel Pin
65	197580	Warning Sign
66	197581	Nameplate, 1/2
68	85089	Strap Deflector
73	213	Truarc Ring
105	21185	Safety Sign
334	71	O-Ring, 17
616	2177	Shcs, M4 X 8
624	524	M6 Lockwasher
