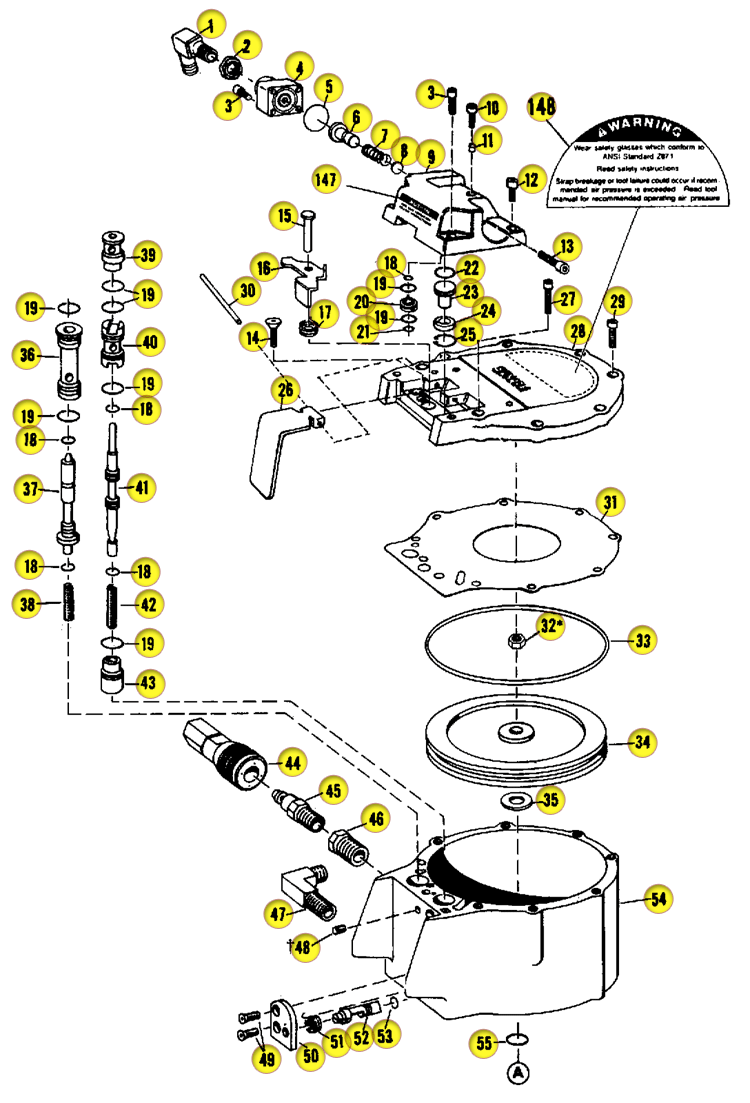

Cylinder Assembly

REQUEST MORE INFO >

Part #	SKU	Product Name
1	2278	Shcs 10-24 X 13/16
2	13690	Shcs 10-24 X 1
3	1195	Valve Latch Pin
4	420	Flat Head Screw Cap
4	1190	Valve Latch
4	19999	Warning Plate
5	1191	Valve Latch Spr
6	192	Shss 10-24 X 7/16
7	1193	Tensioning Lever
8	1192	Sealing Lever
9	15381	Cover
10	1203	Valve Lever Pin
11	1021	Cover Gasket
12	1210	Oring
13	128	1 1/2 x 1 1/2 Square / White Poly - Quote no. 128
14	1186	Piston
16	1188	Tensioner Valve Sleeve
17	1208	Oring
18	1189	Tensioner Valve
19	1209	O Ring 7/32 X 11/32 X 1/16
20	1200	Valve Spring
21	1197	Valve Sleeve
22	1194	Valve Sleeve
22	1220	Sealer Valve
23	1217	Sealer Valve Spring
24	1221	Sealer Valve Sleeve
25	1222	Cylinder
27	13720	Hansen Plug
28	1214	Elbow
30	1207	Set Screw
31	17460	Fhscs 10-24 X 1/2
32	17459	Cover Plate
33	1216	Sure Seal Spring
34	1218	Sure Seal Pawl
35	1219	Oring
122	17717	Thrust Washer
