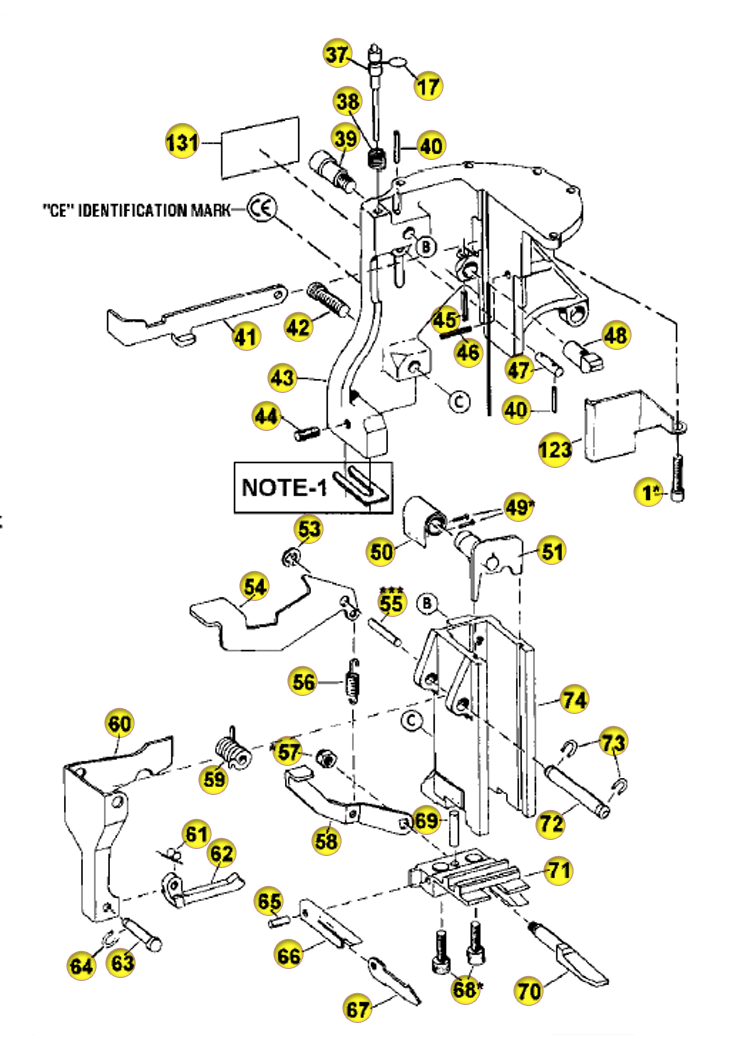

Seal Magazine & Ejector Assembly
| Part # |
SKU |
Product Name |
Get Quote |
| 1 |
2278 |
Shcs 10-24 X 13/16 |
|
| 17 |
1209 |
O Ring 7/32 X 11/32 X 1/16 |
|
| 37 |
1201 |
Motor Plunger |
|
| 39 |
1612 |
Shoulder Bolt |
|
| 40 |
1202 |
Roll Pin |
|
| 40 |
196 |
Drive Screw |
|
| 41 |
1179 |
Motor Latch |
|
| 42 |
171 |
Roll Pin 1/8 X 13/16 |
|
| 43 |
2709 |
Sealer Frame |
|
| 46 |
1212 |
Roll Pin 3/16 X 1 1/2 |
|
| 46A |
289 |
Roll Pin |
|
| 47 |
17455 |
Motor Latch Stop |
|
| 48 |
1892 |
Jaw Support Stop |
|
| 50 |
1180 |
Magazine Spr |
|
| 56 |
1178 |
Gripper Spring |
|
| 58 |
1362 |
Bronze Bushing |
|
| 59 |
1199 |
Ejector Lever Spring |
|
| 60 |
1606 |
Ejector Lever |
|
| 61 |
1176 |
Ejector Spring |
|
| 62 |
1169 |
Ejector |
|
| 63 |
1171 |
Ejector Pin |
|
| 64 |
1636 |
Truarc |
|
| 65 |
1198 |
Strap Guide Pin |
|
| 66 |
1156 |
Strap Latch, Fixed |
|
| 67 |
1157 |
Strap Latch Mov |
|
| 68 |
132 |
Socket Head Cap Screw |
|
| 69 |
299 |
Dowel Pin 3/16 X 7/8 |
|
| 70 |
1175 |
Holding Gripper |
|
| 71 |
1170 |
Cutter Block |
|
| 72 |
17452 |
Ejector Pin |
|
| 73 |
213 |
Truarc Ring |
|
| 74 |
1206 |
Magazine |
|
| 123 |
22224 |
Finger Guard |
|
| 131 |
9990001 |
Cutter Housing |
|
