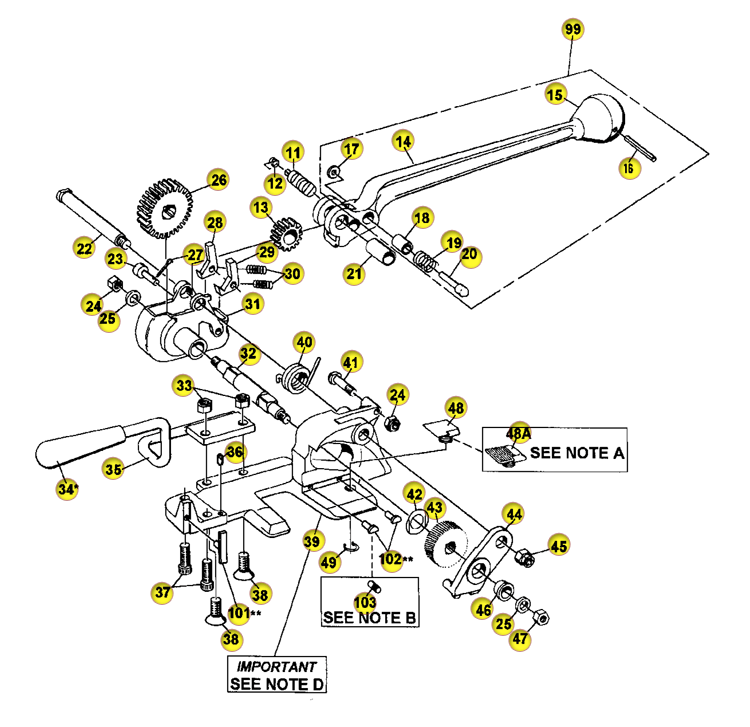

Part # SKU Product Name Get Quote
11 220 Tensioner Pawl
12 221 Pawl Spring
13 141521 Tensioner Pinion
15 519 Knob
16 520 Roll Pin 1/4 X 1 3/4
17 308 Detent Washer
18 229 Detent Bushing
19 219 Detent Spring
20 218 Detent Plunger
21 1322 Handle Bushing
22 1317 Support Shaft
23 223 Retaining Pawl Pin
24 131 1 x 1 Square Label - Quote no. 131
25 225 Feedwheel Washer
26 1315 Tensioner Gear
27 46 Cotter Pin, 3/32 X 3/4
28 215 Short Retaining Pawl
29 214 Long Retaining Pawl
30 222 Retaining Pawl Spring
31 1334 Gear Housing
32 1314 Feedwheel Shaft
33 227 Flexloc Nut (Rep 072132)
34 437 Knob
35 1337 Handle Weldment
36 1183 Strap Guide Spring
37 455 1/4-20X3/4 Shs
38 328 Flat Head Socket Cap Screw, 5/16-18 X 3/4
39 4072 Tensioner Frame (See Note D On Page 14.)
40 1319 Gear Housing Spring
41 1335 Detent Stop
42 261 Spring Washer
43 260 Feedwheel
44 1323 Side Plate Am-5
45 128 1 1/2 x 1 1/2 Square / White Poly - Quote no. 128
46 262 Side Plate Bushing
47 226 L. H. Nut, 5/16-24
48 1481 Rocking Gripper
48A 1339 Gripper Alternate
49 213 Truarc Ring
99 17513 Tensioner Handle Assembly
101 2580 Rear Guide
102 2571 Guide Pad
