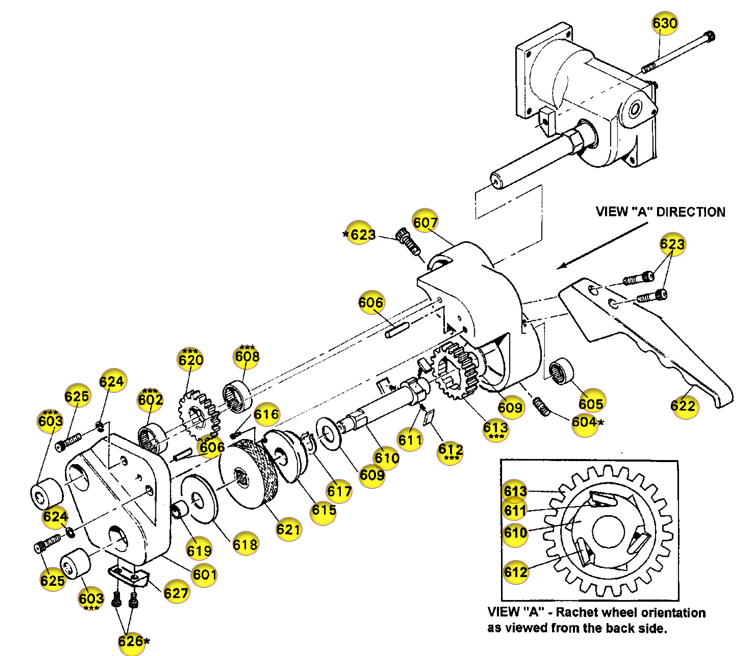

Feedwheel Gear Housing Assembly
| Part # |
SKU |
Product Name |
Get Quote |
|
13848 |
Shaft, Feedwheel |
|
| 1 |
155993 |
Socket Hd Cap Screw |
|
| 601 |
20315 |
Outer Link |
|
| 602 |
20061 |
Bearing, Hk 1516 |
|
| 603 |
3461 |
Needle Bearing Bk1512 |
|
| 604 |
155945 |
Shss, Flat Point, M6 X 20 |
|
| 605 |
21676 |
Needle Bearing Bk1516 |
|
| 606 |
2159 |
Dowel Pin, 6 X 24Mm |
|
| 607 |
20319 |
Housing |
|
| 608 |
21677 |
Bearing, Hk 1812 |
|
| 609 |
13849 |
Thrust Washer |
|
| 610 |
9990115 |
Shaft, Feedwheel |
|
| 611 |
14503 |
Spring, Lee Lc-014B-2 |
|
| 612 |
13850 |
Pawl |
|
| 613 |
21721 |
Gear, 23T |
|
| 615 |
9990116 |
Cover |
|
| 616 |
2177 |
Shcs, M4 X 8 |
|
| 617 |
2636 |
E-Ring, 11-160-0150 |
|
| 618 |
2911 |
Spacer, Feedwheel |
|
| 619 |
21678 |
Inner Race, Ir 12 X 15 X 12 |
|
| 620 |
21720 |
Gear, 19T |
|
| 621 |
2908 |
Feedwheel |
|
| 622 |
20317 |
Lift Handle |
|
| 623 |
514 |
M6 X 20 Shcs |
|
| 624 |
524 |
M6 Lockwasher |
|
| 625 |
9990117 |
Shcs, M6 X 25 |
|
| 626 |
9990118 |
Shcs, M4 X 6 |
|
| 627 |
2907 |
Strap Guide |
|
| 630 |
21733 |
Shcs, M6 X 70 |
|
