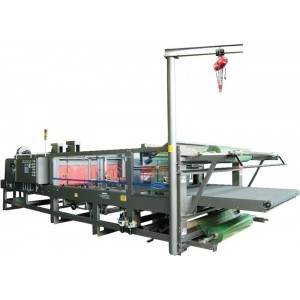

Arpac 105 Series

Product Specifications
Width (across machine)
16 to 72 in
Length (flow direction)
10 to 108 in
Height Range
2 to 11 in
Application	Boxes
Ceiling tiles
Fluorescent Lighting Fixtures
Paper Products
Pizza boxes
Shower Doors
Stock Boxes
Windows
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
From 3 to 20 bundles per minute, depending on product length or height
Electrical Power Requirements
460VAC, 3Ph, 60Hz
Amps depend on Seal Bar Width

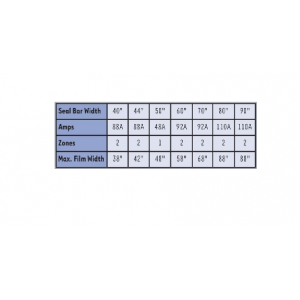

Seal Bar Width 40" 44" 50" 60" 70" 80" 90"
Amps 88A 88A 48A 92A 92A 110A 110A
Zones 2 2 1 2 2 2 2
Max. Film Width 38" 42" 48" 58" 68" 88" 88"
Pneumatic Power Requirements
80 psi, 15 SCFM

Boxes
Ceiling tiles
Fluorescent Lighting Fixtures
Paper Products
Pizza boxes
Shower Doors
Stock Boxes
Windows

Heavy-duty rugged construction designed for high durability and around-the-clock operation
Laser cut and CNC machined components for maximum precision
Powder coat finish that provides a durable scratch resistant surface and prevents corrosion
Handles both "bull's eye" and side seal enclosures
Oversized to run maximum film width up to 89"
Integrated dual stage shrink tunnel
Top and bottom film racks
Quick and easy changeovers of different product sizes

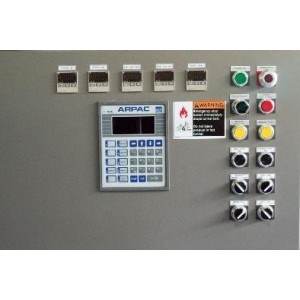

Allen Bradley® programmable logic controller with ARPAC standard operator interface
Digital controls for fast and accurate setup
NEMA 12 electrical cabinet and controls
Central point lubrication for routine maintenance without stopping production
Side smoothing rollers

Film Specifications
Film Roll Diameter
up to 14 in
Film Gauge
up to 3 mil
Film Type
Low density polyethylene (L.D.P.E.)
Other Film Specifications
Clear or randomly printed
Core of film roll - up to 3 in

Options

Product hold down
Low tension film feed
Side seal no trim
Side seal with trim
Manual or automatic adjustment for side seal
Product centering device
System bypass
Floor mounted jib crane
Stainless Steel
NEMA 4X
Extended tunnel for higher product up to 15" (will reduce speed)
