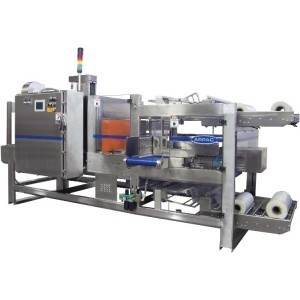

Arpac 108F

Product Specifications
Width (across machine)
up to 30 in
Length (flow direction)
up to 13 in
Height Range
up to 10 in
Application	Aseptic Products
Boxes
Cans
Ice-Cream Containers - Carton
Ice-Cream Containers - Pint
Ice-Cream Containers - Quart
Ice-Cream Containers - Round
Ice-Cream Containers - Scround
Ice-Cream Containers - Square
Plastic bottles
Trays
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Output speed	up to 30 packages per minute, depending on product
Electrical Power Requirements
460V, 3Ph, 60Hz, 39A
Pneumatic Power Requirements
80 psi, 22 SCFM

Aseptic Products
Boxes
Cans
Ice-Cream Containers - Carton
Ice-Cream Containers - Pint
Ice-Cream Containers - Quart
Ice-Cream Containers - Round
Ice-Cream Containers - Scround
Ice-Cream Containers - Square
Plastic bottles
Trays

Compact single frame construction designed for around-the-clock operation
Stainless steel frame, slanted channels and drainage points for washdown environments
8" clearance from floor to frame
Power-driven upper and lower pinch and cradle rollers controlled by low inertia film dancers with fast, straight-through quick threading feature

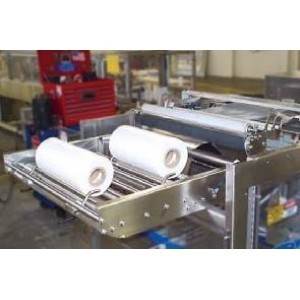

Top and bottom film cradles accommodate four 14" diameter rolls of film
"Step back" product stop relieves back pressure prior to 90 degree transfer
Easy access pullout heater elements
Easy to service air cylinders
Air control system with filter regulator, lubricator and plug-in pneumatic valves
Central point lubrication (nylon lines) simplifies preventative maintenance
Pop-up guide keeps round products properly aligned
Allen-Bradley programmable logic controller
ARPAC's operator interface with color touchscreen, message display and self-diagnostics
NEMA 4X electrical controls and cabinets
Low film alert warns that a film changeover will soon be necessary
Powered seal conveyor for greater output
Self tracking conveyor belts for easy cleaning
Quick-change seal bar with military-type quick disconnect and replaceable plasma coated inserts
Product hold down for light products
Transfer bridge plate for smooth product transition through seal gap
Choice of cradle or spindle film rack
Right or left hand mounted infeed and controls
Operator manuals with maintenance, safety and operating procedures
Levelers for uneven floors
Heavily insulated shrink tunnel for cold environments

Film Specifications
Film Roll Diameter
up to 14 in
Film Gauge
1 to 2 mil
Film Type
Low density polyethylene (L.D.P.E.)
Film Roll Width
up to 30 in

Options

Casters for machine portability
Cooling section at tunnel exit for immediate product handling
Servo driven ram for custom applications
Central lubrication with copper or stainless steel tubing
Spare Parts Kit
Custom solutions to suit your specific application
