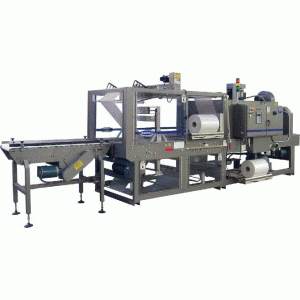

Arpac 45TW Tray Shrink Wrapper

Product Specifications
Width (across machine)
6 to 18 in
Length (down machine)
6 to 15 in
Height
2 to 12 in
Application	Cans
Floor tiles
Glass bottles
Glass jars
Plastic bottles
Plates
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Up to 45 trays per minute
Electrical Power Requirements
460VAC, 3Ph, 60Hz, 48A, 38kW
Pneumatic Power Requirements
80 psi, 30 SCFM

Cans
Floor tiles
Glass bottles
Glass jars
Plastic bottles
Plates

Features

Welded steel frame construction, standard with right hand controls
72" in-feed pacing conveyor, in-feed conveyor, 17" wide belt, Intralox 1100 flat top.
Continuous motion 28" seal carriage, clutch driven forward and pneumatic cylinder driven back
Seal conveyor is single stage with an Intralox 1100 friction top 17" wide belt

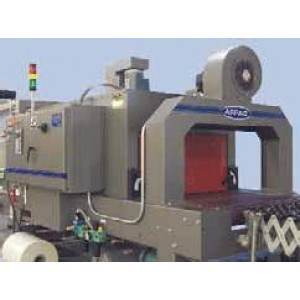

Tunnel is single blower with Intralox 900 tunnel belt
Three-way cooling section

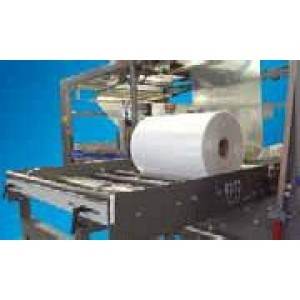

Side mounted single film roll cradles (top & bottom) to accommodate two 14" diameter rolls of film
Manual film splicing bar (1 hot bar to use with top & bottom cold bars)
Top & bottom film feed with dancer bar system
Central point lubrication
Allen Bradley CompactLogix logic controller

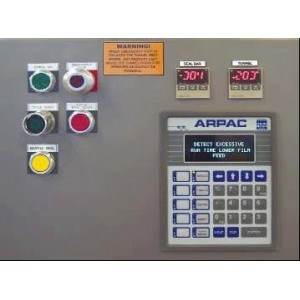

Allen Bradley PanelView 600 Plus operator interface
Automatic set-up of size from operator interface
Low film alert
Bypass mode

Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Powder coated finish is Arpac standard.

[please click]

Film Specifications
Film Roll Diameter
Question? 14 in
Max. Film Gauge
4 mil
Film Type
Low density polyethylene (L.D.P.E.)
Max. Film Roll Width
27 in
Other Film Specifications
Clear or randomly printed

Options
Options
45TW-28 Option, Auxiliary control station without operator interface (will affect lead time)
45TW-28 Option, Spare parts kit purchased within 14 days of machine order
45TW-28 Option, Spare roll cradles for top and bottom (will affect lead time)
45TW-28 Option, Testing of additional products when integrated into a system (each)
45TW-28 Option, UL/CSA approved main electrical cabinet
45TW-28 Option, Auxiliary E-Stop

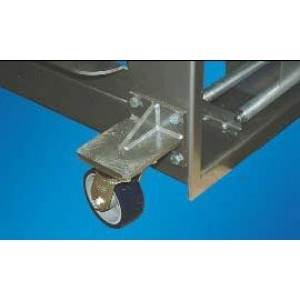

45TW-28 Option, Casters
45TW-28 Option, Low tension film assist
45TW-28 Option, Print registration capability, top roll only, machine de-rates to 35/min (will affect lead time)
45TW-28 Option, Product guide rails on pacing conveyor
45TW-28 Option, Quick change seal cylinder kit for shorter seal opening
45TW-28 Option, Spare parts kit
Bridge Options
45TW-28 Option, Telescoping bridge for 2.5" long products (will affect lead time)
45TW-28 Option, Short product transfer bridge for 5" long products (will affect lead time)
Spare Part Kits
45TW-28-MIN, Model 45TW-28 Minimal Spare Parts Kit
45TW-28-STD, Model 45TW-28 Standard Spare Parts Kit
45TW-28-FULL, Model 45TW-28 Full Spare Parts Kit
