Arpac 708HB Shrink Bundler

Product Specifications
Width (across machine)
3/4 to 11 in
Length (flow direction)
3/4 to 11.5 in
Height Range
1/2 to 8 in
Other Product Range Specifications
input
3/4" - 9 1/2"
3/4" - 11 1/2"
1/2" - 8"
output
3 1/2" - 11"
3/4" - 10"
1/2" - 8"
Application	Beauty products
Boxes
Cosmetics
Glass bottles
Plastic bottles
Spices
Spray cans
Vials
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Up to 30 packages per minute
Electrical Power Requirements
208V, 230V or 460V, 3Ph, 60Hz
Pneumatic Power Requirements
80 psi, 5 SCFM

Beauty products
Boxes
Cosmetics
Glass bottles
Plastic bottles
Spices
Spray cans
Vials

Compact single-frame stainless steelconstruction
Heavy-duty system for around-the-clockoperation
Laser cut and CNC machined componentsfor maximum precision and strength
Right or left-hand mounted infeedand controls
Allen-Bradley programmablelogic controller

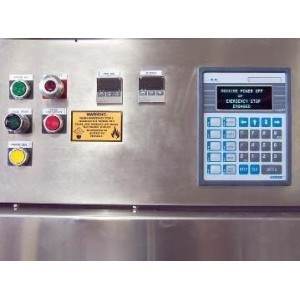

ARPAC operator interface featuringan alphanumeric message displayand self-diagnostics
Simple setup and tool-less changeoversfor ease of use and minimal downtime
Low maintenance conveyor belts do notrequire tracking adjustments

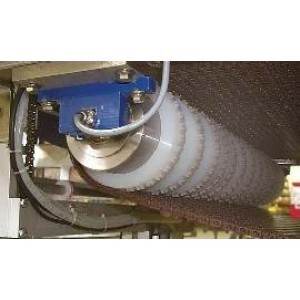

Motorized pulleys eliminate chain drivesand operate more cleanly, with reducedmaintenance cost and less noise
Single stage right-angle infeed conveyorwith Intralox belt

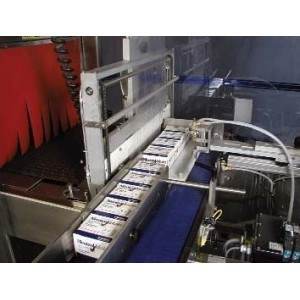

Telescoping tunnel conveyor

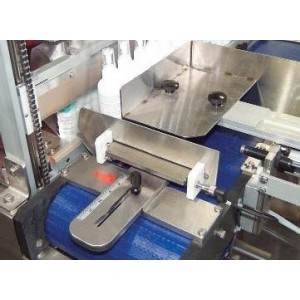

Bridge plate for small product transfer
Conveyor elevation 35" +2/-0 for easyintegration with existing equipment
Powered film unwind
NEMA 12 electrical cabinet and controls
Low film alert warns that a film changeoverwill soon be necessary

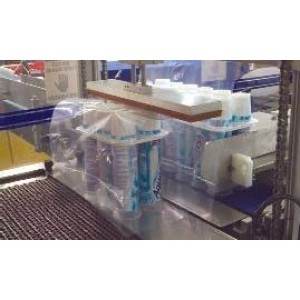

Quick-change seal bar with military-typequick disconnect and replaceable plasmacoated inserts
Product hold-down for light products
Top and bottom film racks accomodatefour 14" diameter rolls of film
Easy to service air cylinders

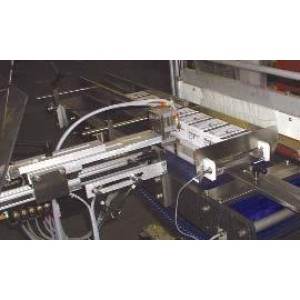

Separate pop-up guide and multipleram stroke programmingfor multi-row collation
No lubrication required for cleanand easy maintenance
Levelers for uneven floors

Film Specifications
Film Roll Diameter
up to 14 in
Film Gauge
up to 3 mil
Film Type
Polyethylene
Film Roll Width
up to 15 in

Options

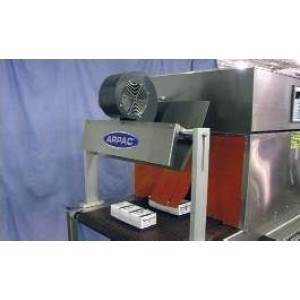

Turbo cooling section feature at the tunnel exit for quick product handling
Application specific infeeds
Easy open film perforation system
