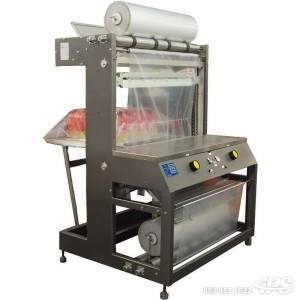

Arpac 737C Manual Operation Shrink Bundler

Product Specifications
Width (across machine)
up to 35 in
Length (flow direction)
up to 16 in
Height Range
up to 19.5 in
Application	Any conveyable product that can be automatically or manually loaded into the machine
Boxes
Cartons
Trays
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Manually fed and manually operated seal bars
Electrical Power Requirements
120VAC, 1Ph, 60Hz, 15A
Pneumatic Power Requirements
80 psi, 2 SCFM

Any conveyable product that can be automatically or manually loaded into the machine
Boxes
Cartons
Trays

737C Wrapper
Rugged steel construction, standard with inline front center controls
Stainless steel dead plate infeed
18" long idler roller discharge conveyor
Dual palm buttons for seal head activation
Seal jaw safety system
Hot knife seal system

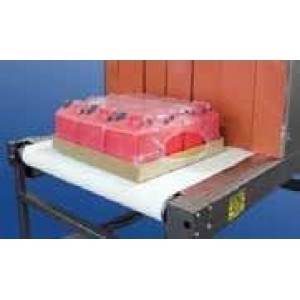

HVP4/488 Shrink Tunnel (Optional)
Rugged steel construction in a compact size for space efficiency, with right hand controls
Calrod heating elements
Allen Bradley temperature controller
1 HP drive
1 HP blower motor
Conveyor speeds 0 to 85 feet/minute

Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Powder coat paint system is standard.

[please click]

Film Specifications
Film Roll Diameter
up to 14 in
Film Gauge
1 to 3 mil
Film Type
Low density polyethylene (L.D.P.E.)
Polyethylene
Film Roll Width
up to 37 in
Other Film Specifications
Single-wound film roll

Options

Stainless Steel Construction
Powered discharge conveyor, 36" long
Casters, CRS
Casters, Stainless Steel
Auxiliary E-Stop
36" Extended Idler Roller Infeed in place of STD 18" infeed
24" Extended Dead Plate Infeed Table
24" extended idler roller discharge in place of STD 18" discharge conveyor (Add 4 to 6 weeks to delivery time)
UL/CSA approved main electrical cabinet
Model 737C Minimal Spare Parts Kit
Model 737C Standard Spare Parts Kit
Model 737C Full Spare Parts Kit
