Arpac 75GI-24X Shrink Bundler

Product Specifications
Width (across machine)
5 to 12 in
Length (flow direction)
7 to 22 in
Height Range
3/16 to 10 in
Application	Books
Catalogs
Magazines
Mailers
Newspapers
Paper Products
Periodicals
Tabloids
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Output speed	up to 75 packages per minute
Electrical Power Requirements
480V, 3Ph, 60Hz, 50A, 40kW
Note	other voltages available on request
Pneumatic Power Requirements
80 psi, 12 SCFM

Books
Catalogs
Magazines
Mailers
Newspapers
Paper Products
Periodicals
Tabloids

Heavy-duty rugged construction designedfor high durability and around-the-clockoperation
Compact, single frame design(wrapper with integrated tunnel)
Laser cut and CNC machined componentsfor maximum precision
Speeds up to 75 bundles per minute
Wraps random sized stacks on demand
Servo controlled continuous motionseal head provides smooth and quicktransition of product through the wrapperat high speeds
Servo drives provide excellent repeatabilitythroughout the life of the machine
Quick change plasma-coated seal barsfor long life and easy maintenance
Timing belt stabilized seal frame reducesmaintenance and dirt accumulation
Independent variable speed driveson the wrapper and tunnel
Zero tension film feed prevents papersheets or slippery magazines from shingling
Side mounted film cradles for easyfilm loading
Shrink tunnel with product cooling sectionat the tunnel exit speeds film curing
Durable Intralox conveyor belts eliminatetracking problems
Low film alert warns that a film changeoverwill soon be necessary
Allen-Bradley programmable logiccontroller with ARPAC standardoperator interface
Digital controls for fast and accuratesetup
NEMA 12 electrical cabinet and controls
Central point lubrication allows for routinemaintenance without stopping production

[please click]

Film Specifications
Film Roll Diameter
up to 14 in
Film Gauge
1.5 to 2.5 mil
Film Type
Low density polyethylene (L.D.P.E.)
Film Roll Width
6 to 19 in
Other Film Specifications
Clear or randomly printed
Core of film roll - up to 3 in

Options

Split belt conveyor allows wrapping of thinand lightweight products. This is typically usedfor e-commerce applications where productis placed on a chipboard or corrugated padprior to wrapping
Collating systems for grouping stacks of productstogether before they proceed through the seal frameand into the shrink tunnel
On certain high-gloss or stitched products, staticcharging may be necessary to hold the bundle togetherwhile shrink wrapping. Please consult ARPAC when thismay be an issue

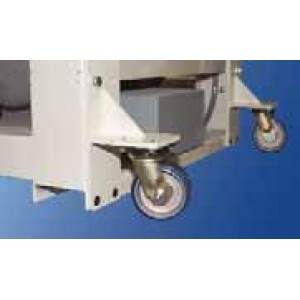

Casters for machine portability
Side smoothing rollers to smooth out odd shapedbull's eyes
ARPAC can design and build a systemto suit your specific application
