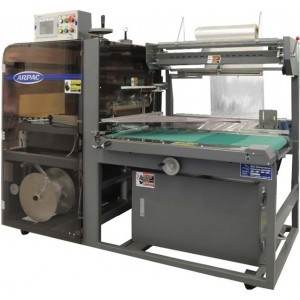

Arpac Arrow Side Motion Seal Wrapper
SKU IPS-ARROW
The ARPAC ARROW intermittent motion side seal wrapper offers you the latest in shrink packaging technology, featuring a proprietary design that provides fast, user-friendly and reliable operation. The ARROW's versatility picks up where the Automatic L-Bar Series leaves off. Capable of running product as short as 2", up to infinite length and up to 6" high. This flexible, low maintenance system is guaranteed to provide you with high quality packaging for retail display. It will accept randomly fed product, and intermixed lengths within its speed range. The system does not require precise spacing like a continuous motion wrapper. This simplifies infeed requirements.
Need a live product specialist? Please call 800-277-7007Specifications
| Product Specifications | |
|---|---|
| Width (across machine)1 | |
| 1 1/2 to 19 in | |
| Length (flow direction)2 | |
| 4 and up in | |
| Height Range3 | |
| 1/4 to 6.5 in | |
| Seal Dimensions | |
| 21 1/2" W x seal bar width | |
| Other Product Range Specifications | |
| 1 1/2" length minimum with stoke limit feature | |
| Package width + height cannot exceed 21 1/2" | |
| Max. Package Weight | |
| 25 lb | |
| 1 Package maximums cannot occur together | |
| 2 Package maximums cannot occur together | |
| 3 Package maximums cannot occur together | |
| Type | Shrink Sealers and Wrappers |
Features

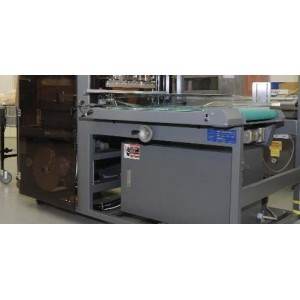

Welded steel frame in a compact size for space efficiency.
Guillotine style hot knife seal bar design.
Single point adjustment seal height with automatic seal cylinder stroke limiting.
"Seal Height Calibration Sequence" automatically determines proper seal head cushioning.
45-90 FPM variable speed conveyor.
Soft start using AC frequency control.

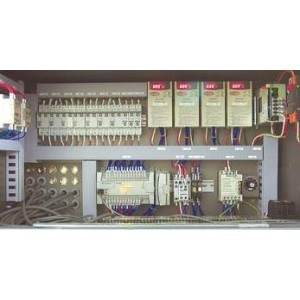

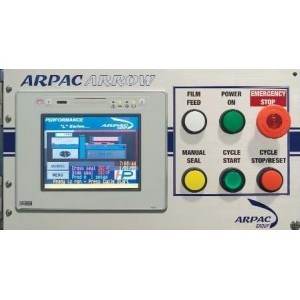

Allen Bradley MicroLogix PLC and color touch-screen interface.

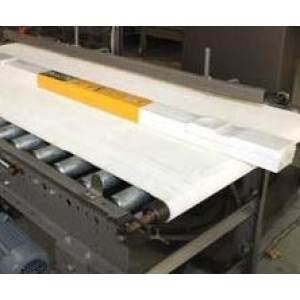

Continuous product staging infeed.

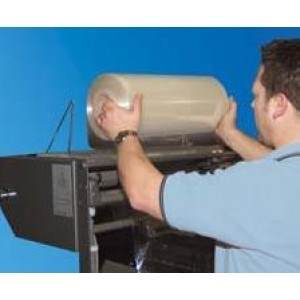

Easy load film cradle with on-demand power film feed.
Perforator wheel hole punch (pneumatic hole punch optional).

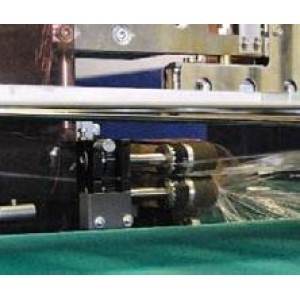

Film pinch roller is positioned ahead of seal head eliminating film breaks/tears.

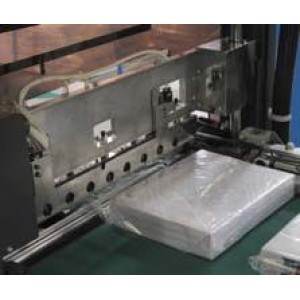

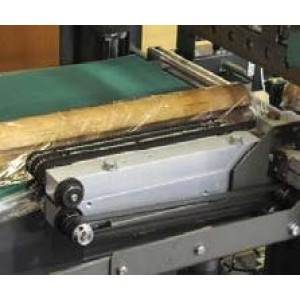

Non-Contact Radiant Heat Side Sealer for polyolefin, PVC and LDPE

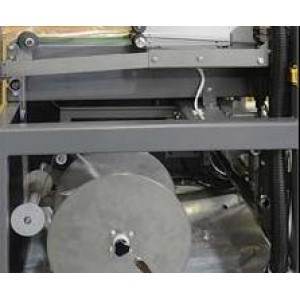

Scrap film trim removal by rewind system.

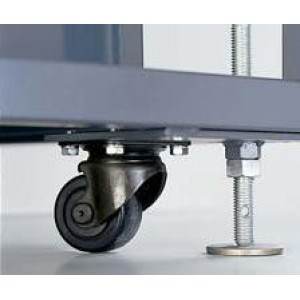

Casters with adjustable legs.
One fully illustrated comprehensive operation and maintenance manual.
Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Powder coated paint is ARPAC Standard
Guillotine style hot knife seal bar design.
Single point adjustment seal height with automatic seal cylinder stroke limiting.
"Seal Height Calibration Sequence" automatically determines proper seal head cushioning.
45-90 FPM variable speed conveyor.
Soft start using AC frequency control.
Allen Bradley MicroLogix PLC and color touch-screen interface.
Continuous product staging infeed.
Easy load film cradle with on-demand power film feed.
Perforator wheel hole punch (pneumatic hole punch optional).
Film pinch roller is positioned ahead of seal head eliminating film breaks/tears.
Non-Contact Radiant Heat Side Sealer for polyolefin, PVC and LDPE
Scrap film trim removal by rewind system.
Casters with adjustable legs.
One fully illustrated comprehensive operation and maintenance manual.
Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Powder coated paint is ARPAC Standard
Notes
Film Specifications
Film Roll Diameter
11 1/2 in
Film Type
Center Folded
Film Centerfold Maximum Width
up to 30 in
Other Film Specifications
"B" wind
Sizing formula: W + H (1" min.) + 3" = CF film width.For products over 3" high, use W + H + 4 = CF film width.
Film Roll Diameter
11 1/2 in
Film Type
Center Folded
Film Centerfold Maximum Width
up to 30 in
Other Film Specifications
"B" wind
Sizing formula: W + H (1" min.) + 3" = CF film width.For products over 3" high, use W + H + 4 = CF film width.
Options
Options
6Â’ belted infeed conveyor
6Â’ flighted infeed conveyor
6Â’ variable speed belted infeed conveyor with right angle indexer
11Â’ belted infeed conveyor
10Â’ flighted infeed conveyor
6’ long by 2” high Paper guides
10’ long by 2” high Paper guides
Infeed Product Guide Product
Lower Film Cradle
Pneumatic Hole Punch
Print Registration
UL/CSA Listed Panel
480 Volt Conversion
Auxiliary E-Stop
Auxiliary Infeed Control Relay
6Â’ belted infeed conveyor
6Â’ flighted infeed conveyor
6Â’ variable speed belted infeed conveyor with right angle indexer
11Â’ belted infeed conveyor
10Â’ flighted infeed conveyor
6’ long by 2” high Paper guides
10’ long by 2” high Paper guides
Infeed Product Guide Product
Lower Film Cradle
Pneumatic Hole Punch
Print Registration
UL/CSA Listed Panel
480 Volt Conversion
Auxiliary E-Stop
Auxiliary Infeed Control Relay
