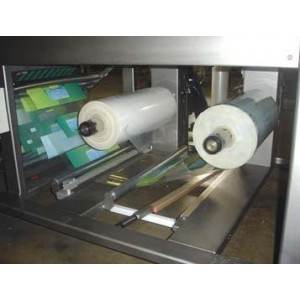

Arpac BPTS-5200 Shrink Wrapper

Product Specifications
Width (across machine)
5 to 25 in
Length (down machine)
3 to 12.5 in
Height Range
2.5 to 13.5 in
Application	Cans
Folding cartons
Glass bottles
Glass jars
Grease tubes
Liquid filled boxes
Multipacks
Pad Supported
Plastic bottles
Tray Supported
Unsupported
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Output speed	up to 45 bundles per minute depending upon product specifications
Electrical Power Requirements
460V, 3Ph, 60Hz, 125A
Note	other voltages available on request
Pneumatic Power Requirements
80 psi, 30 SCFM at 45 cycles/min.
Machine Length
533 in

Cans
Folding cartons
Glass bottles
Glass jars
Grease tubes
Liquid filled boxes
Multipacks
Pad Supported
Plastic bottles
Tray Supported
Unsupported

Printed film registration for accurate placement of printed graphics
Heavy-duty frame construction with welded joints for high durability
Laser cut and CNC machined components for maximum precision
Steel-It paint provides a scratch resistant surface and prevents corrosion
Fully guarded for safety and easy access
Gentle product handling for tall bottles and other unstable products
Servo-driven film feed can adapt to a wide range of film lengths and is low maintenance
Inline film rack and film splicing bar for quick and easy film changeover
Allen-Bradley® programmable controller
ARPAC operator interface features a color touchscreen with message display and self-diagnostics
Pass through mode can be activated when wrapper is not operating, eliminating need for bypass conveyor
Cooling section at the tunnel exit
Low film alert warns that a changeover may soon be necessary
Central point lubrication for routine maintenance without stopping production
Right or left hand operator station and film rack is available
Variety of infeed and product accumulation devices available

Film Specifications
Film Roll Diameter
up to 21 in
Max. Film Gauge
1.75 to 2.5 mil
Film Type
Polyethylene
Max. Film Roll Width
10 to 30 in
Other Film Specifications
Clear, print registered or randomly printed film
Core of film roll - up to 3 in

Options
Options
BPTS-5200 Option, Air or servo lane divider
BPTS-5200 Option, NEMA 4X for washdown environments
BPTS-5200 Option, Stainless-steel construction
BPTS-5200 Option, Tray wrapping kit
BPTS-5200 Option, Various infeed and collation options
