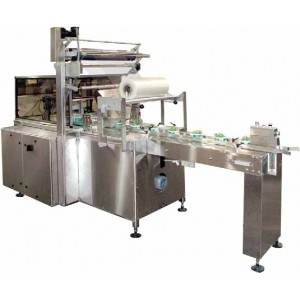

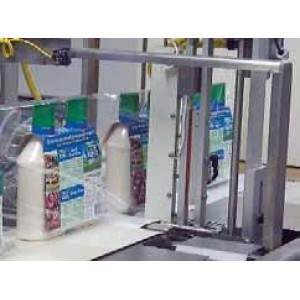

Arpac HC-37 Shrink Wrapper

Product Specifications
Width (across machine)1
up to 16 in
Length (flow direction)2
3 1/2 and up in
Height Range3
up to 12 in
Seal Dimensions
17" Wide Seal Bar
Other Product Range Specifications
Specifications and product sizes may vary, depending upon the application.
Product Size When Seal Bar is Vertical4
Width - up to 7 1/2"
Length - 3 1/2" and up
Height - up to 12"
Product Size When Seal Bar is Horizontal5
Width - up to 16"
Length - 3 1/2" and up
Height - up to 7 1/2"
1 Package maximums cannot occur together
2 Package maximums cannot occur together
3 Package maximums cannot occur together
4 Length - 3.5" or less with optional seal jaw bridge.
5 Length - 3.5" or less with optional seal jaw bridge.
Application	Cosmetics
Food products
Games
Light bulbs
Mailers
Multipacks
Paper Products
Print applications
Spray cans
Type	Shrink Sealers and Wrappers
Specifications (long)	Machine Specifications
Speed1
Up to 80 packages per minute
Up to 90 linear feet per minute
Electrical Power Requirements
230VAC, 1Ph, 22A
Pneumatic Power Requirements
80 psi, 10 SCFM
1 Production speed depends on product size, stability, and film characteristics.

Cosmetics
Food products
Games
Light bulbs
Mailers
Multipacks
Paper Products
Print applications
Spray cans

Features

Welded tubular steel frame construction, standard with left hand controls
6' flighted infeed conveyor with safety torque limiter
Powered film unwind.
One fixed film former with quick change mounting bridge.
Bottom overlap static sealer.
Vacuum belt conveyor.
8" cross seal bar opening (for horizontal cross seals)
Horizontal/vertical cross seal capability
Electrically interlocked polycarbonate guarding surrounding cross seal and trim seal assemblies
"No Product Detected" photo eye on infeed
Central lubrication fittings, nylon tubing to lubrication points.
NEMA 12 main electrical cabinet
Powered film unwind
Vertical/horizontal cross seal capability
Guillotine style hot knife seal bar design.
Seal bar safety.
Seal frame located in a reciprocating rack and pinion seal carriage.
Vertically adjustable trim seal unit with crank handle.
Laterally adjustable trim seal primary conveyer.

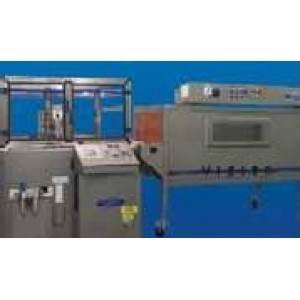

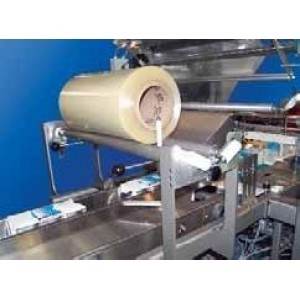

Easy to load film cradle mounted over infeed conveyor handles up to 37" single wound film
Needle perforation wheels for air evacuation

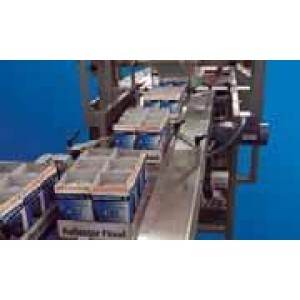

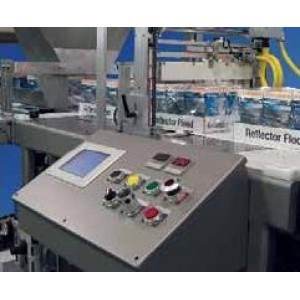

Allen Bradley Micrologix controller.
Allen Bradley PanelView 600 Plus operator interface
Standard Allen Bradley electrical components
Circuit breaker protection (no fuses)
Solid state seal bar heater relay
Variable speed discharge conveyor for film bunching

Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Gray powder-coated paint is standard.

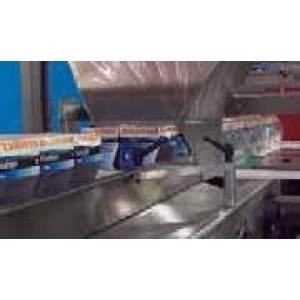

[please click]

Film Specifications
Film Roll Diameter
up to 14 in
Film Type
Polyethylene
Polyolefin
PVC
Film Centerfold Maximum Width
up to 37 in
Other Film Specifications
Single-wound film roll

Options
Lug Infeed Conveyors

10' Lug Infeed Conveyor in place of standard
15' Lug Infeed Conveyor in place of standard
20' Lug Infeed Conveyor in place of standard
6' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
10' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
15' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
20' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)

Vertical Drop Lug Infeed Conveyors

6' Vertical Drop Lug Infeed Conveyor in place of standard
10' Vertical Drop Lug Infeed Conveyor in place of standard
15' Vertical Drop Lug Infeed Conveyor in place of standard
20' Vertical Drop Lug Infeed Conveyor in place of standard
6' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
10' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
15' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
20' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)

"T" Lug Vertical Drop Infeed Conveyors

6' "T" Lug Vertical Drop Infeed Conveyor in place of standard
10' "T” Lug Vertical Drop Infeed Conveyor in place of standard
15' "T" Lug Vertical Drop Infeed Conveyor in place of standard
20' "T" Lug Vertical Drop Infeed Conveyor in place of standard
6' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
10' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
15' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
20' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)

Paper infeed guides (“Z” shaped) in place of standard guides for lugged infeed:
6' Long Infeed

1-1/4" high paper guides
2" to 3" high paper guides
5" high paper guides

10' Long Infeed

1-1/4" high paper guides
2" to 3" high paper guides
5" high paper guides

15' Long Infeed

1-1/4" high paper guides
2" to 3" high paper guides
5" high paper guides

Infeeds

6' dual belt pacing infeed "quick connect"
10' flight bar infeed "quick connect"
10' flight bar infeed with roller bed, "quick connect"
20' flight bar infeed, "quick connect"
Adjustable lug option
Spare lugs, each

Film Handling

Film former
Print registration capability, servo driven with programming
Easy open perforator wheel
Random hole punch (recommended for polyethylene film)
Film inverter support for lightweight product
Low profile package guide for product less than 1/2" high
Sealstrip Peelwrap Applicator

Seal Bars

Quick change cross seal bar assembly for polyolefin films
Quick change cross seal bar assembly for polyethylene films

Seal

Thermal/static bottom lap sealer in place of standard static (Polyolefin)
Hot air bottom overlap sealer in place of standard static (Polyethylene)
Seal bar closing conveyor
Horizontal/vertical seal bar photo eye assembly

Miscellaneous

Bunching Clutch (> 24" long product)
Stainless steel construction (specify HCF37)
480V in place of 240V
208V/380V/575V electrical in place of 240V/480V
UL/CSA approved main electrical cabinet
Guard doors on both sides
NEMA 4X boxes
Auxiliary E-Stop
Model HC37 Minimal Spare Parts Kit
Model HC37 Standard Spare Parts Kit
Model HC37 Full Spare Parts Kit
