Arpac HCF-37-3 Shrink Wrapper

Ceiling tiles
Doors
Insulation

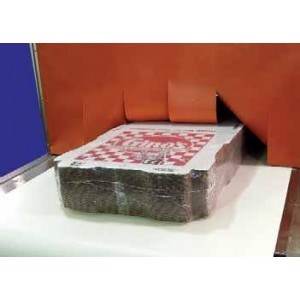

Pizza boxes
Rubber mats
Windows

Features

Frame and major structural components are rugged welded steel-channeled frame construction.
16" Seal bar opening
Standard conveyor height: 37" to 40"
1 HP variable speed main drive motor

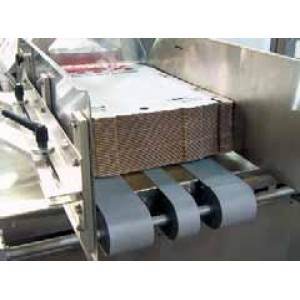

The lugged infeed conveyor with adjustable pin spacing offers flexibility for a variety of products.
Right-hand operator push button controls with right-hand electrical enclosure

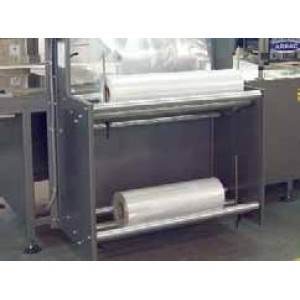

Dual film roll side mounted film rack
On-demand powered film feed
Power-driven pinch roller film feed for smooth starts and stops.
Low mass pneumatic-powered seal frame.
Hot knife cross seal bar
Solid-state relays for temperature and cycle control.
Enclosure around sealing zone with interlock switches
One fixed film forming plow
Dual power drop.

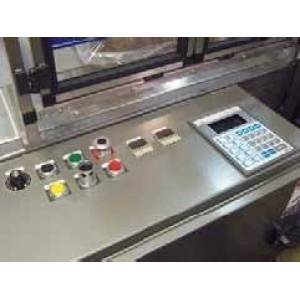

Allen Bradley MicroLogix logic controller with PanelView 600 Plus operator interface
All digital controls for timing and temperature settings
"No Tools" film roll cradle.

Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Gray powder-coated paint is standard.

[please click]

Film Specifications
Film Roll Diameter
up to 20 in
Film Type
Center Folded Polyethylene
Center Folded Polyolefin
Center Folded PVC
Film Centerfold Maximum Width
up to 37 in

Options

Hot air bottom overlap sealer
Thermal & static sealer for bottom overlap
Random pneumatic hole punch
Casters, CRS
Additional film former
24" gravity discharge conveyor
Auxiliary E-Stop
UL/CSA approved main electrical cabinet
Model HCF37-3 Minimal Spare Parts Kit
Model HCF37-3 Standard Spare Parts Kit
Model HCF37-3 Full Spare Parts Kit

Application	Ceiling tiles
Doors
Insulation
Pizza boxes
Rubber mats
Windows
Type	Shrink Sealers and Wrappers
Specifications (long)	Machine Specifications
Speed1
Up to 15 packages per minute
(based on product specifications)
Max. belt speed	68FPM
Electrical Power Requirements
240V, 3Ph, 60Hz, 14A
Pneumatic Power Requirements
60-80 psi, 5 SCFM
1 Production speed depends on product size, stability, and film characteristics.
Product Specifications
Width (across machine)1
up to 27 in
Length (flow direction)2
8 and up in
Height Range3
up to 16 in
Other Product Range Specifications
Specifications and product sizes may vary, depending upon the application.
1 Package maximums cannot occur together
2 Package maximums cannot occur together
3 Package maximums cannot occur together
