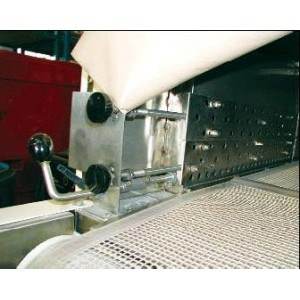

Arpac MP122245 Mesh Belt Shrink Tunnel
SKU IPS-MP122245
ARPAC shrink tunnels with mesh belt conveyors are designed to produce a complete, uniform shrink using all available shrink films, including polyethylene, polyolefin and PVC.

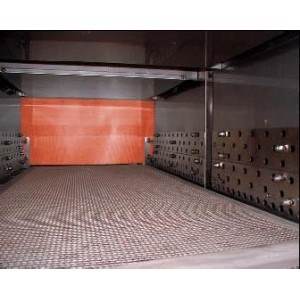

Heavy duty, variable speed blowers create a high velocity recirculating air system, which forces hot air throughout the tunnel. PTFE coated fiberglass mesh belt conveyors allow this hot air to reach all surfaces of the package, resulting in a uniform shrink on a wide range of product sizes and configurations.
Control systems regulating temperature, air velocity and conveyor speeds, allow for a variety of operating conditions and ensure optimum shrink on all heat shrinkable packaging films.
Need a live product specialist? Please call 800-277-7007Specifications
| Product Specifications | |
|---|---|
| Speed | |
| 0 to 109 feet per minute | |
| Application | Boxes |
| CD's/DVD's | |
| Cosmetics | |
| Food products | |
| Games | |
| Mailers | |
| Multipacks | |
| Paper Products\ | |
| Type | Mesh Belt Tunnel |
Application
Boxes
CD's/DVD's
Cosmetics
Food products
Games
Mailers
Multipacks
Paper Products\
CD's/DVD's
Cosmetics
Food products
Games
Mailers
Multipacks
Paper Products\
Features
Features
Trouble-free user-friendly controls assure optimal operation
Calrod heating elements provide long life, easy maintenance and minimum down-time
Heavy-duty, high quality components and rugged construction provide continuous operation with minimal maintenance
Variable speed conveyor ensures uniform shrink and is adjustable to meet production requirements
Thermocouple temperature control provides precise temperature control
Circuit breaker protected components for easy troubleshooting and minimal maintenance
Re-circulating heating system consumes less electrical energy by minimizing heat loss
Trouble-free user-friendly controls assure optimal operation
Calrod heating elements provide long life, easy maintenance and minimum down-time
Heavy-duty, high quality components and rugged construction provide continuous operation with minimal maintenance
Variable speed conveyor ensures uniform shrink and is adjustable to meet production requirements
Thermocouple temperature control provides precise temperature control
Circuit breaker protected components for easy troubleshooting and minimal maintenance
Re-circulating heating system consumes less electrical energy by minimizing heat loss
Notes
Specifications
Power
10.5 kW
Voltage (AC)
240 V
480 V
Current
15 A
30 A
Phases
Three
Blower Motor
One 1/2 HP
Conveyor Drive Motor
1/4 hp
Recommended Efficient Temperature Control
200 to 500 ºF
Conveyor Belt Width
20 in
Belt
Teflon coated fiber glass
Power
10.5 kW
Voltage (AC)
240 V
480 V
Current
15 A
30 A
Phases
Three
Blower Motor
One 1/2 HP
Conveyor Drive Motor
1/4 hp
Recommended Efficient Temperature Control
200 to 500 ºF
Conveyor Belt Width
20 in
Belt
Teflon coated fiber glass
Options
Options
DC Variable speed blower motors
Casters (CRS or S.S.)
208V electrical
Stainless steel construction
Air motor evacuation system
Rigid nylon fiberglass belt
Live roller conveyor (available for MPD122260)
Recommended spare parts
DC Variable speed blower motors
Casters (CRS or S.S.)
208V electrical
Stainless steel construction
Air motor evacuation system
Rigid nylon fiberglass belt
Live roller conveyor (available for MPD122260)
Recommended spare parts
