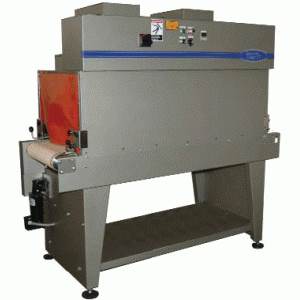

Arpac MPD122290 Mesh Belt Shrink Tunnel
SKU IPS-MPD122290
ARPAC shrink tunnels with mesh belt conveyors are designed to produce a complete, uniform shrink using all available shrink films, including polyethylene, polyolefin and PVC.
Heavy duty, variable speed blowers create a high velocity recirculating air system, which forces hot air throughout the tunnel. PTFE coated fiberglass mesh belt conveyors allow this hot air to reach all surfaces of the package, resulting in a uniform shrink on a wide range of product sizes and configurations.
Control systems regulating temperature, air velocity and conveyor speeds, allow for a variety of operating conditions and ensure optimum shrink on all heat shrinkable packaging films.
Need a live product specialist? Please call 800-277-7007Specifications
| Product Specifications | |
|---|---|
| Speed | |
| 0 to 109 feet per minute | |
| Application | Boxes |
| CD's/DVD's | |
| Cosmetics | |
| Food products | |
| Games | |
| Mailers | |
| Multipacks | |
| Paper Products | |
| Type | Mesh Belt Tunnel |
Application
Boxes
CD's/DVD's
Cosmetics
Food products
Games
Mailers
Multipacks
Paper Products
CD's/DVD's
Cosmetics
Food products
Games
Mailers
Multipacks
Paper Products
Features
Features
Trouble-free user-friendly controls assure optimal operation
Calrod heating elements provide long life, easy maintenance and minimum down-time
Heavy-duty, high quality components and rugged construction provide continuous operation with minimal maintenance
Variable speed conveyor ensures uniform shrink and is adjustable to meet production requirements
Thermocouple temperature control provides precise temperature control
Circuit breaker protected components for easy troubleshooting and minimal maintenance
Re-circulating heating system consumes less electrical energy by minimizing heat loss
Trouble-free user-friendly controls assure optimal operation
Calrod heating elements provide long life, easy maintenance and minimum down-time
Heavy-duty, high quality components and rugged construction provide continuous operation with minimal maintenance
Variable speed conveyor ensures uniform shrink and is adjustable to meet production requirements
Thermocouple temperature control provides precise temperature control
Circuit breaker protected components for easy troubleshooting and minimal maintenance
Re-circulating heating system consumes less electrical energy by minimizing heat loss
Notes
Specifications
Power
21 kW
Voltage (AC)
240 V
480 V
Current
36 A
73 A
Phases
Three
Blower Motor
Two 1/2 HP
Conveyor Drive Motor
1/4 hp
Recommended Efficient Temperature Control
200 to 500 ºF
Conveyor Belt Width
20 in
Belt
Teflon coated fiber glass
Power
21 kW
Voltage (AC)
240 V
480 V
Current
36 A
73 A
Phases
Three
Blower Motor
Two 1/2 HP
Conveyor Drive Motor
1/4 hp
Recommended Efficient Temperature Control
200 to 500 ºF
Conveyor Belt Width
20 in
Belt
Teflon coated fiber glass
Options
Options
208V electrical
Air driven evacuation system
Auxiliary E-Stop
Casters (CRS)
Casters (S.S.)
Falcon conveyor belt
Live roller conveyor bed (specify LRPD122260)
Spare parts kit
Spare parts kit purchased within 14 days of machine order
Stainless steel construction with NEMA 4X (not wash down)
UL/CSA approved main electrical cabinet
Variable D.C. blower motors
208V electrical
Air driven evacuation system
Auxiliary E-Stop
Casters (CRS)
Casters (S.S.)
Falcon conveyor belt
Live roller conveyor bed (specify LRPD122260)
Spare parts kit
Spare parts kit purchased within 14 days of machine order
Stainless steel construction with NEMA 4X (not wash down)
UL/CSA approved main electrical cabinet
Variable D.C. blower motors
