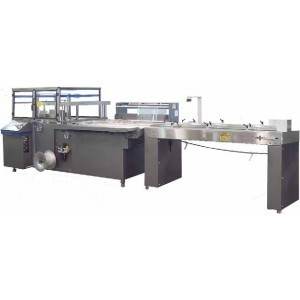

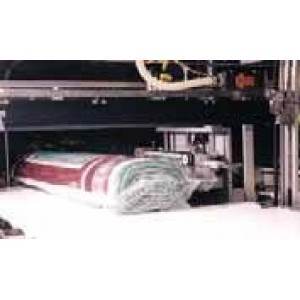

Arpac TS33CF Shrink Wrapper

Artwork & supplies

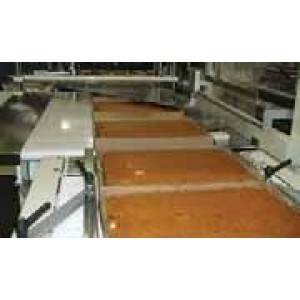

Bakery products
Desk pads
Knock-down boxes

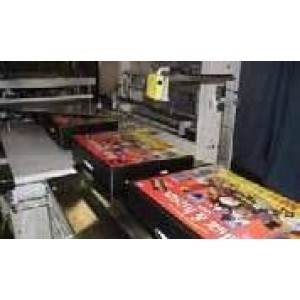

Large toys & games
Multipacks of facial tissue
Oversize envelopes
Rugs
Shutters

Features

Welded steel frame in a compact size for space efficiency.
10' flighted infeed conveyor.

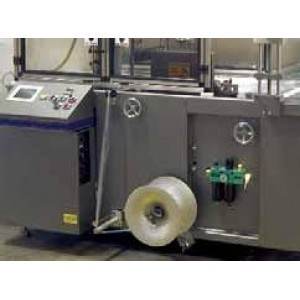

Easy load film cradle with on-demand power film feed.

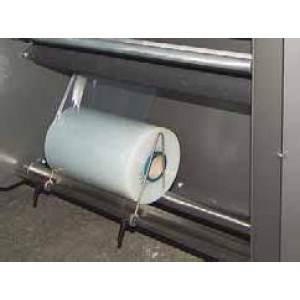

Powered film unwind.
Vertically adjustable side seal unit.
Vertically adjustable film inverter, up to 12" high.
Laterally adjustable film inverting head conveyor.
Laterally adjustable side seal primary conveyor.
Guillotine style hot knife seal bar design.
Horizontal side seal unit
Film pinch roller is positioned ahead of seal head eliminating film breaks/tears.
Scrap film trim removal by rewind system.
Allen Bradley MicroLogix 1400 controller

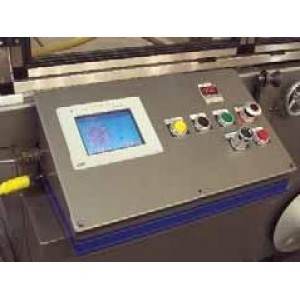

Allen Bradley PanelView 600 Plus operator interface.
NEMA 12 main electrical cabinet.
Electrically interlocked Lexan guarding surrounding cross and side seal areas.
Central lubrication with nylon tubing.

Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Gray Powder Coated Finish is Arpac Standard

[please click]

Film Specifications
Film Roll Diameter
up to 14 in
Film Type
Polyethylene
Polyolefin
PVC
Film Centerfold Maximum Width
up to 33 in
Other Film Specifications
Centerfolded maximum film width

Options

Dual pneumatic hole punch (recommended for polyethylene film)
20' lugged infeed in place of std. 10'
30' lugged infeed in place of std. 10'
Additional needle wheels (each)
Print registration
208V electrical
208V /380V/575V in place of 240V
Quick change cross-seal knife for PVC films
Quick change cross-seal knife for polyolefin films
Quick change cross-seal knife for polyethylene films
66" wide centerfolder
Easy open perforator wheel assembly
Air tuckers
Bottom heated seal pad
UL/CSA approved main electrical cabinet
Auxiliary E-Stop
Model TS33CF Minimal Spare Parts Kit
Model TS33CF Standard Spare Parts Kit
Model TS33CF Full Spare Parts Kit

"Z" shaped paper infeed guides in place of standard guides for lugged infeed:
10' Long Infeed

2" high paper guides
4" high paper guides
6" high paper guides

20' Long Infeed

2" high paper guides
4" high paper guides
6" high paper guides

30' Long Infeed

2" high paper guides
4" high paper guides
6" high paper guides

Shrink Tunnel Options

MPD163090

Application	Artwork & supplies
Bakery products
Desk pads
Knock-down boxes
Large toys & games
Multipacks of facial tissue
Oversize envelopes
Rugs
Shutters
Type	Shrink Sealers and Wrappers
Specifications (long)	Machine Specifications
Speed1
Up to 60 packages per minute
(based on product specifications)
Output speed	up to 80 linear feet per minute
Electrical Power Requirements
240VAC, 1 Ph, 60Hz, 20A
Pneumatic Power Requirements
80 psi, 5 SCFM
1 Production speed depends on product size, stability, and film characteristics.
Product Specifications
Width (across machine)1
8 to 26 in
Length (flow direction)2
4 and up in
Height Range3
1/8 to 12 in
Seal Dimensions
28" Wide Seal Bar
Other Product Range Specifications
Length range given is 4" (w/o bridge) to infinite
1 Package maximums cannot occur together
2 Package maximums cannot occur together
3 Package maximums cannot occur together

IPS_TS33CF_logo.pdf
