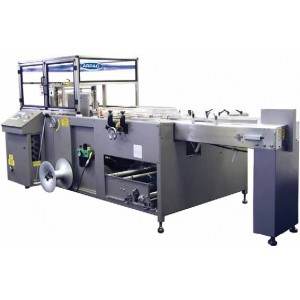

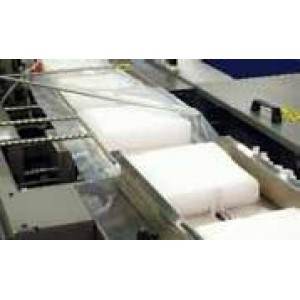

Arpac TS37 Shrink Wrapper

SKU IPS-TS37
Side Seal Horizontal Shrink Wrapper
- +
Need a live product specialist?  Please call 800-277-7007

Specifications

Product Specifications
Width (across machine)1
2 to 16 in
Length (flow direction)2
3 1/2 to 60 in
Height Range3
1/4 to 12 in
Other Product Range Specifications
Specifications and product sizes may vary, depending upon the application.
Product Size When Seal Bar is Vertical4
Width - 2" to 7 1/2"
Length - 3 1/2" to 60"
Height - 2" to 12"
Product Size When Seal Bar is Horizontal5
Width - 2" to 16"
Length - 3 1/2" to 60"
Height - 1/4" to 7 1/2"
1 Package maximums cannot occur together
2 Package maximums cannot occur together
3 Package maximums cannot occur together
4 Length - 3.5" or less with optional seal jaw bridge.
5 Length - 3.5" or less with optional seal jaw bridge.
Application Bottles
Cosmetics
Food products
Games
Hardware
Linens
Mailers
Multipacks
Paper Products
Pharmaceutical
Software
Spray cans
Toys
Type Shrink Sealers and Wrappers

Application

Bottles
Cosmetics
Food products
Games
Hardware
Linens
Mailers
Multipacks
Paper Products
Pharmaceutical
Software
Spray cans
Toys

Features

Features

Welded tubular steel frame construction.

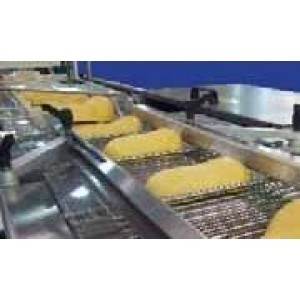

6' flighted infeed conveyor with safety torque limiter. Other sizes and styles optional
"No Product Detected" photo eye on infeed.
Level wind film scrap take-up system.
Central lubrication with Nylon tubing, copper tubing optional
Electrically interlocked Polycarbonate guards surrounding cross seal and trim seal unit.

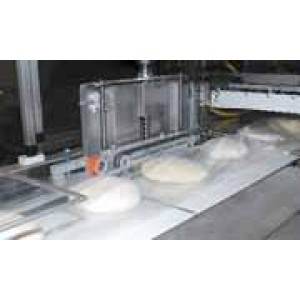

Vertical/horizontal cross seal capability
Guillotine style hot knife seal bar design.
8" cross seal opening
Seal bar safety.
Seal frame located in a reciprocating rack and pinion seal carriage.

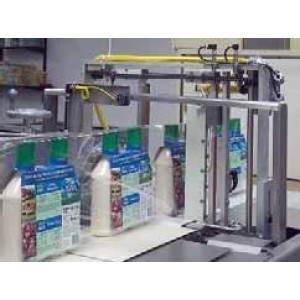

Vertically adjustable trim seal unit with crank handle.
Laterally adjustable trim seal primary conveyer.

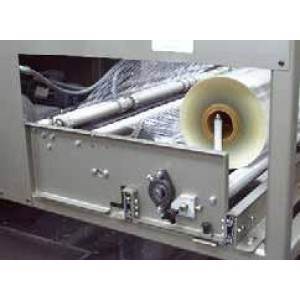

Easy load film cradle with on-demand power film feed mounted on a slide out film rack.
Rotary needle wheel film perforation assembly, random and/or registered hole punches optional.
Adjustable film inverting head.
Allen Bradley MicroLogix 1400 PLC.

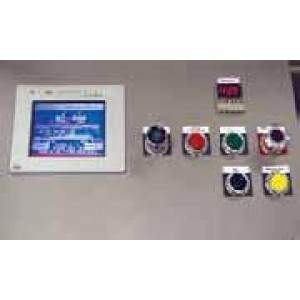

Allen Bradley PanelView 600 Plus operator interface
Standard Allen Bradley electrical components
Circuit breaker protection (no fuses)
Solid state seal bar heater relay

Guarding and Finish
All working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.
Gray powder-coated finfish is Arpac standard.

Machine Layout

Notes

Film Specifications
Film Roll Diameter
up to 14 in
Film Centerfold Maximum Width
up to 39 in
Other Film Specifications
Single-wound film roll

Options

Options
Lug Infeed Conveyors

10' Lug Infeed Conveyor in place of standard
15' Lug Infeed Conveyor in place of standard
20' Lug Infeed Conveyor in place of standard
6' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
10' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
15' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
20' Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)

Vertical Drop Lug Infeed Conveyors

6' Vertical Drop Lug Infeed Conveyor in place of standard
10' Vertical Drop Lug Infeed Conveyor in place of standard
15' Vertical Drop Lug Infeed Conveyor in place of standard
20' Vertical Drop Lug Infeed Conveyor in place of standard
6' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
10' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
15' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
20' Vertical Drop Lug Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)

"T" Lug Vertical Drop Infeed Conveyors

6' "T" Lug Vertical Drop Infeed Conveyor in place of standard
10' "T” Lug Vertical Drop Infeed Conveyor in place of standard
15' "T" Lug Vertical Drop Infeed Conveyor in place of standard
20' "T" Lug Vertical Drop Infeed Conveyor in place of standard
6' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
10' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
15' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)
20' "T" Lug Vertical Drop Infeed Conveyor - Stand Alone New Style (Quick Connect, includes drive motor)

Paper infeed guides (“Z” shaped) in place of standard guides for lugged infeed:
6' Long Infeed

1-1/4" high paper guides
2" to 3" high paper guides
5" high paper guides

10' Long Infeed

1-1/4" high paper guides
2" to 3" high paper guides
5" high paper guides

15' Long Infeed

1-1/4" high paper guides
2" to 3" high paper guides
5" high paper guides

Infeeds

6' dual belt pacing infeed "quick connect"
10' flight bar infeed "quick connect"
10' flight bar infeed with roller bed, "quick connect"
20' flight bar infeed, "quick connect"
15' flight bar infeed

Film Handling

Print registration capability (Servo driven with programming)
Easy open perforator wheel
Random hole punch (recommended for polyethylene film)
Film inverter support for lightweight product
Low profile package guide for product less than 1/2" high
Sealstrip Peelwrap Applicator

Seal Bars

Quick change cross seal bar assembly for polyolefin films
Quick change cross seal bar assembly for polyethylene films

Conveyor Options

Standard seal bar closing conveyor to allow product less than 3-1/2" long to travel over seal bar opening (7-5/8" wide belt allows either horizontal or vertical cross sealing)
Narrow seal bar closing conveyor to allow product less than 3-1/2" long to travel over seal bar opening (5" wide belt allows either horizontal or vertical cross sealing)
Seal bar closing conveyor to allow product less than 3-1/2" long to travel over seal bar opening (9-1/2" wide belt allows only horizontal cross sealing)
Bunching clutch on discharge (for use on long products)
Stainless steel construction (not wash down)
Model TS37 - Polyethylene Minimal Spare Parts Kit
Model TS37 - Polyethylene Standard Spare Parts Kit
Model TS37 - Polyethylene Full Spare Parts Kit
Model TS37 - Polyolefin Minimal Spare Parts Kit
Model TS37 - Polyolefin Standard Spare Parts Kit
Model TS37 - Polyolefin Full Spare Parts Kit

Electronic Options

208V/380V/575V electrical in place of 240V/480V
480V in place of 240V
NEMA 4X box
Auxiliary control box for opposite side control (push buttons only)
Stack light (2 color)
Low film alert (includes 3 color stack light)
Alarm horn
Remote start/stop (pendent)
Additional E-Stops
UL/CSA approved main electrical cabinet
Guard doors on both sides and trim seal assemblies
