BEL 252 Fully Automatic Case Taper
SKU BEL 252

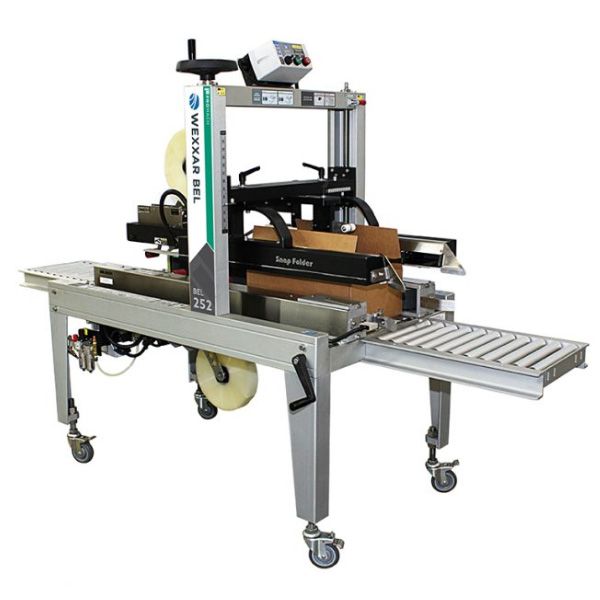

The BEL 252 is a fully automatic uniform case taper that offers high performance, and significant value. With an ultra-compact design, the versatile BEL 252 is able to fit in most applications and can be combined with a BEL 505 system or a WF case former to create a complete form, pack and seal system.
Ultra Safe and Ultra Compact Design
The BEL 252 is able to achieve an extremely compact design due to the use of Wexxar Bel's exclusive Snap Folder flap folding system. This ultra-safe technology is able to reliably fold all four top flaps while keeping an open design where the operator can safely work next to the machine without the need for any guarding. The BEL 252 fully automatic, uniform case taper is a perfect choice for the productions looking to automate case sealing lines at a practical cost.
Need a live product specialist? Please call 800-277-7007Specifications
| Speed | up to 25 CPM (cases per minute) |
|---|---|
| Construction | Premium welded frame with corrosion-resistant materials including anodized aluminum and stainless steel for a paint-free construction |
| Adhesion | Tape |
| Country of Origin | Designed and Built in Canada |
| Machine Dimensions (L x W x H) | 1422 mm x 838 mm x 1524 mm (56" x 33" x 60") |
| Type | Equipment |
Features
Exclusive Snap Folder Technology Dynamic and safe flap folding of all four top flaps allows operator to safely work next to case sealer without the need for bulky guarding.
Uni-Drive Belt System Eliminates case skew and ensures cases are squarely sealed even after years of prolonged use.
Compact Design Small machine footprint without the need for guarding allows for greater flexibility while saving your floor space.
Open Design Open design allows easy access to the machine for quick tape roll changes or trouble shooting when required.
Quick Changeover On machine pictorial guides with dual lead screws for easy size changes from either side.
Premium Tape Head Standard DEKKA SE-22 stainless steel tape head.
