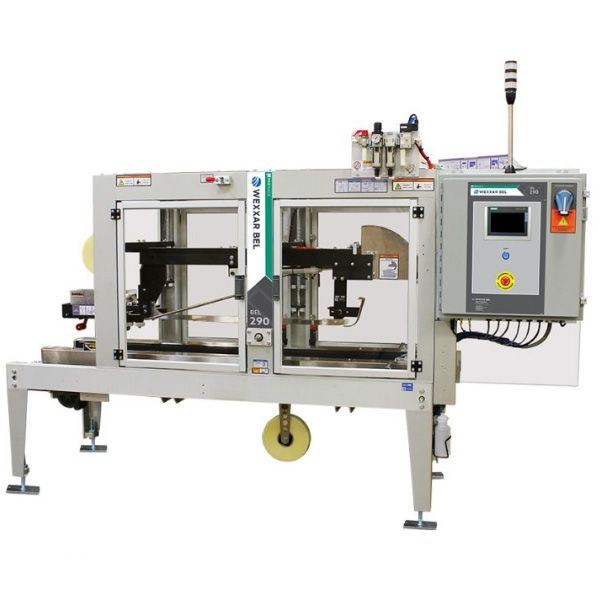

BEL 290 High Speed Automatic Case Sealer
SKU BEL 290
The BEL 290 automatic case sealer is designed to meet the demands of high throughput applications while minimizing energy waste during slow or paused case production upstream. The case sealer is able to achieve up to 50 cases per minute and is equipped with Power Save Mode to significantly reduce operating costs by lowering energy consumption and reducing the wear and tear on the machine. Furthermore, the BEL 290 features rotary folders as opposed to a flap kicker, providing a significantly safer flap folding experience.
Fully Equipped
This premium case sealer features easy touch-screen controls, a self-squaring side-belt drive system and tool-less, color-coded case size changeover for an intuitive user experience. High quality materials like extruded anodized aluminum and a strong welded frame construction gives the BEL 290 the reliability and durability required for high speed, 24/7 operation.
The BEL 290 can be equipped with either tape or hot melt sealing depending on the needs of your application.
Need a live product specialist? Please call 800-277-7007Specifications
| Speed | up to 50 CPM (cases per minute) |
|---|---|
| Construction | Premium welded anodized aluminum frame construction for corrosion resistance and a paint free construction |
| Adhesion | Available in tape or hot melt |
| Controls | HMI colour touchscreen interface |
| Country of Manufacturing | Designed and Built in Canada |
| Type | Equipment |
Features
Built for High Speed Operation Extruded aluminum welded frame with self centering belts provide durability and structure required for high speed case sealing.
Energy Save Mode The machine automatically goes into an energy save mode automatically goes into a "sleep" state after a certain period of inactivity until the next case is presented, significantly reducing the energy consumption, energy costs and wear and tear on the machine over the long run.
WISE System Intuitive HMI controls with on-board machine tuning with pictorial representations when errors arise for quick identification and troubleshooting.
Advanced Safety Features Rotary folder to ensure there are no protruding parts during flap folding. Interlocked safety guarding also ensures operators cannot get into the machine during operation.
Quick Changeover On machine pictorial guides with dual lead screws for easy size changes from either side.
Premium Adhesion Systems Standard DEKKA SE-22 stainless steel tape head for tape version and Nordson ProBlue hot melt for glue version.
