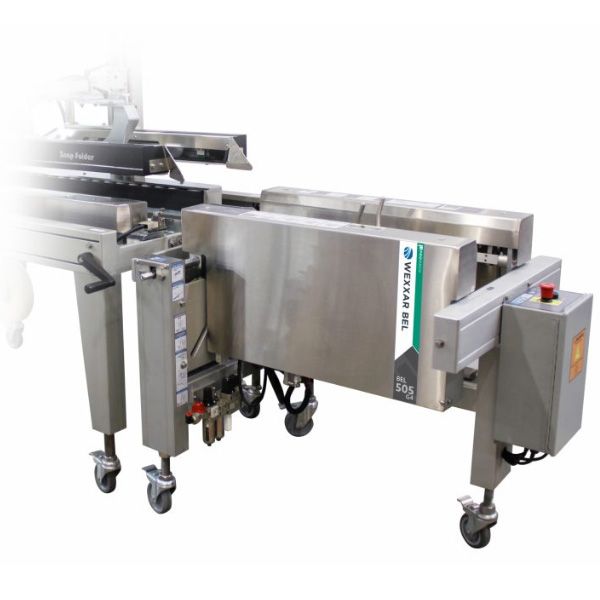

BEL 505G4 Semi-Automatic Case Erector
SKU BEL 505G4
The BEL 505G4 semi-automatic case forming and packing station is a compact and ergonomic packaging solution ideal for replacing manual hand packing. The machine dynamically folds the bottom of the case and holds it in place for the operator to begin packing. This allows for quick and ergonomic case packing, much more efficient than a traditional hand pack line. When combined with a BEL case sealer, it allows one operator to form, pack and seal corrugated cases in a single operation.
Smooth and Precise Operation.
The BEL 505G4 utilizes electro-pneumatics for a quiet, high precision fold. This allows the machine to excel in applications featuring more unique or less traditional case styles. The manual switches have also been upgraded for non-contact sensors, allowing for a higher precision fold, fewer wear parts on the machine, and better performance on softer recycled corrugated.
The BEL 505G4 can be paired with a BEL 150 series machine to create a WFPS 5150 Form, Pack and Seal System.
Need a live product specialist? Please call 800-277-7007Specifications
| Speed | up to 15 CPM (cases per minute) |
|---|---|
| Construction | Premium corrosion-resistant materials including anodized aluminum, and stainless steel for a paint-free construction |
| Country of Origin | Designed and Built in Canada |
| Machine Dimensions (L x W x H) | 1092 mm x 819 mm x 673 mm (43” x 32.25” x 26.5”) |
| Type | Equipment |
Features
Ergonomic 2-Handed Packing The BEL 505G$ holds the case in place for quick and ergonomic case packing.
Precision Dynamic Flap Folding Mechanical flap folding ensures cases are consistently square, even with softer or recycled corrugated.
Compact Design Small machine footprint saves valuable floor space and removes the time and space-consuming process of pre-forming cases.
Smooth and Quiet Operation The use of electro-pneumatic switches and folders provides a precise and quiet fold which also reduces the amount of worn parts on the machine.
Quick Changeover On-machine pictorial guides with dual lead screws for easy size changes from either side.
