BestPack ATFUX Automatic Case Sealers
SKU IPS-ATFUX
The BestPack ATFUX Series carton sealer is an operator free carton sealing machine, using pressure sensitive tape, designed to cater to heavy duty needs of packing houses using HSC cartons. Great for use in packaging oranges, potatoes, or apples.
Need a live product specialist? Please call 800-277-7007Features
Self Centering Guide Rails
Adjustable Compression Rollers
Width/Height Adjustment on either side of machine
Drive Belts are Equipped w/ a "V" Guide
Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Capable of Interchanging 2" or 3" Tape Heads
Standard Equipment
Exclusive Pop-out pressure sensitive "high speed" tape heads w/ patented tab adjustment and noise reduction arm
Maintenance Free, Oil-less Air Cylinders
Easy to thread tape heads
Operation Manual
Adjustable Compression Rollers
Width/Height Adjustment on either side of machine
Drive Belts are Equipped w/ a "V" Guide
Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Capable of Interchanging 2" or 3" Tape Heads
Standard Equipment
Exclusive Pop-out pressure sensitive "high speed" tape heads w/ patented tab adjustment and noise reduction arm
Maintenance Free, Oil-less Air Cylinders
Easy to thread tape heads
Operation Manual
Machine Layout
Options
Optional Equipment
Stainless Steel
Spare Parts Kit
Stainless Steel
Spare Parts Kit
Parts List

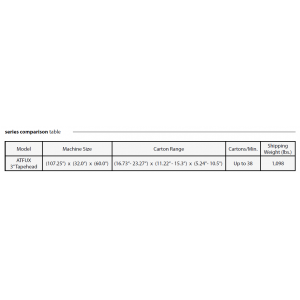

Specifications
| Type | Automatic Random Machines |
|---|---|
| Specifications (long) | Machine & Carton Specifications |
| Power Requirements | 220 Volts, 3 Phase, 20 Amps, 10 |
| Air Requirements | 90 PSI, 8 CFM |
| Speed | Up to 38 cartons/minute |
| Tape Head | Standard |
| Shipping Weight | 1,098 lbs |
| Machine Dimensions ¹ | L |
| W | 32.25" |
| H | 60.0" |
| Carton Min/Max Range² | L |
| W | 11.22" - 15.31" |
| H | 5.24" - 10.5" |
| ¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications. | |
| ² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements. | |
