BestPack MBD Adjustable Case Sealers
SKU IPS-MBD
The BestPack MBD Series are operator-fed, adjustable, carton-sealing machines designed to cater to the needs of light to heavy duty, uniform carton closure applications. The two bottom belts are driven by one bottom drive electric 110V UL approved motor. The MBD Series are also designed with four adjustable legs for quick easy height adjustment to production lines.
Need a live product specialist? Please call 800-277-7007Specifications
| Standard Equipment | |
|---|---|
| Exclusive Pop-out pressure sensitive "high speed" tape head with patented tab adjustment and noise reduction arm | |
| Operation Manual | |
| Type | Semiautomatic Uniform |
| Specifications (long) | Machine & Carton Specifications |
| Power Requirements | 110 Volts 60 Hz |
| Speed | Up to 40 cartons/minute |
| Tape Head | Standard |
| Shipping Weight | 272 lbs |
| Machine Dimensions ¹ | View/Compare Machine Dimensions |
| Carton Min/Max Range² | View/Compare Carton Ranges |
| ¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications. | |
| ² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements. | |
Features
Features
Two Bottom Belts
Telescopic Mast Design
Adjustable Bed Height from 25.3" to 30.00"
Height Adjustment either side of machine
Extra 4" Carton Height Adjustment Available on Upper Assembly
Box Top Compression Unit
Guide Rail Centering Mechanism
Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Sealer available in 2" or 3" tape heads
Two Bottom Belts
Telescopic Mast Design
Adjustable Bed Height from 25.3" to 30.00"
Height Adjustment either side of machine
Extra 4" Carton Height Adjustment Available on Upper Assembly
Box Top Compression Unit
Guide Rail Centering Mechanism
Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Sealer available in 2" or 3" tape heads
Options
Optional Equipment
Infeed Conveyor
Carton Stabilizer
Locking heavy-duty caster (4 casters)
Stainless steel

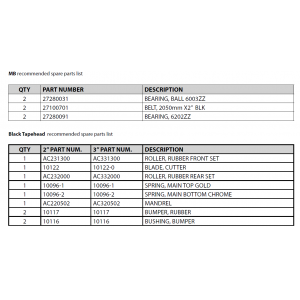

Spare Parts Kit
Infeed Conveyor
Carton Stabilizer
Locking heavy-duty caster (4 casters)
Stainless steel
Spare Parts Kit
