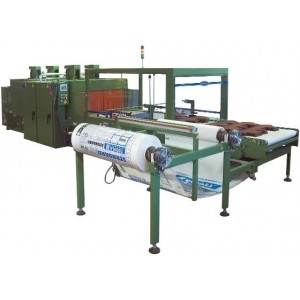

Brandpac BPSW-5000

Product Specifications
Width (across machine)
30 to 42 in
Length (down machine)
7 to 14.5 in
Height Range
2.25 to 5 in
Application	Ceiling tiles
Corrugated board
Roofing Shingles
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Output speed	up to 45 packages per minute
Electrical Power Requirements
460V, 3Ph, 60Hz, 200A, 47 kW (BPSW-5201), 77 kW (BPSW-5301)
Note	other voltages available on request
Pneumatic Power Requirements
80 psi, 20 SCFM at 40 CPM

Ceiling tiles
Corrugated board
Roofing Shingles

Speeds up to 45 bundles per minute
Heavy-duty frame construction with welded joints for high durability
Laser cut and CNC machined components for maximum precision

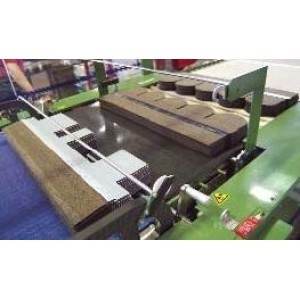

Servo controlled precise overwrap system
A unique film feed system dispenses, on demand, single sheets of film cut to size from a single print registered film roll
Dual side mounted film rack with splice bar and spare film roll to reduce down time
Low film alert warns that a film changeover will soon be necessary
ARPAC operator interface featuring a color touch screen with message display and self diagnostics
Central point lubrication allowing routine maintenance without stopping production

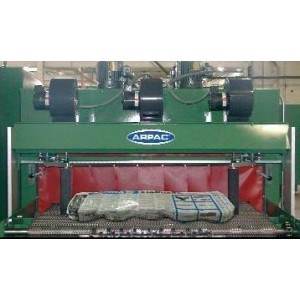

Integrated shrink tunnel with a triple turbo cooling unit expedites film curing and stabilizes product in the package as it cools the shrink wrapped shingles
Tough polyurethane belt on acceleration and overwrap conveyors
Uses clear or print-registered polyethylene shrink film

Film Specifications
Film Roll Diameter
up to 20 in
Max. Film Gauge
1.75 to 4 mil
Film Type
Polyethylene
Max. Film Roll Width
up to 52 in
Other Film Specifications
Clear or randomly printed
Single-wound film roll

Options
Options
BPSW-5000 Option, Optional side smoothing rollers at tunnel discharge
BPSW-5000 Option, These machines are customized to your product specification. Contact your local Arpac representative for more information.
