Brandpac BPTW-5200

Product Specifications
Width (across machine)
6 to 20 in
Length (down machine)
5 to 12 in
Length
267 1/8 in
Height
3 to 12 in
Type	Shrink Bundler
Specifications (long)	Machine Specifications
Speed
Up to 45 packages per minute
Electrical Power Requirements
480V, 3Ph, 60Hz
Note	other voltages available on request
Pneumatic Power Requirements
80 psi, 30 SCFM at 50 cycles per minute
Power
97 A
42 kW

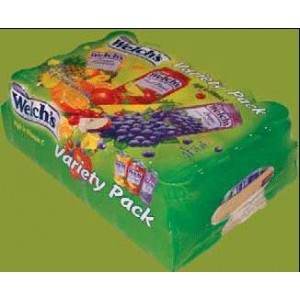

Printed film registration for accurate placement of printed graphics
Heavy-duty frame construction with welded joints for high durability
Laser cut and CNC machined components for maximum precision
Steel-It paint provides a scratch resistant surface and prevents corrosion
Fully guarded for safety and easy access
Gentle product handling for tall bottles and other unstable products

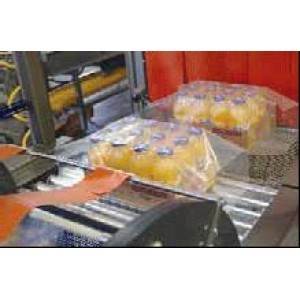

Servo driven overwrap for smooth and efficient film wrapping
Servo-driven mechanical film feed is low maintenance and can adapt to a wide range of film lengths (no vacuum)
Side mounted film rack and film splicing bar for quick and easy film changeover with little or no downtime
Allen-Bradley® programmable controller

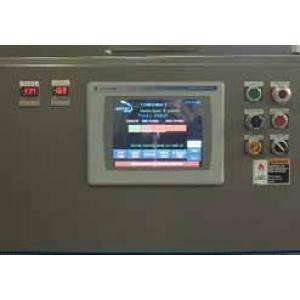

ARPAC operator interface features a color touchscreen with message display and self-diagnostics
On-demand wrapping action handles randomly spaced products
Pass through mode can be activated when wrapper is not operating, eliminating need for bypass conveyor
3-way cooling section at the tunnel exit
Low film alert warns that a changeover may soon be necessary
Central point lubrication for routine maintenance without stopping production
Right or left hand operator station and film rack is available
Standard machine mounted jib crane to assist with film loading
Air conditioning standard on main electrical enclosure

Compact Design
The sturdy, compact BPTW-5000 design is a welcome addition to even the most space conscious plant layouts. The wrapper's control panel and easily accessible mechanisms are added benefits of this efficient design.

Film Specifications
Film Roll Diameter
Question? up to 20 in
Max. Film Gauge
1.75 to 2.5 mil
Film Type
Polyethylene
Max. Film Roll Width
6 to 26 in
Other Film Specifications
Clear, print registered or randomly printed
|Quick Product Changeovers and Easy Maintenance

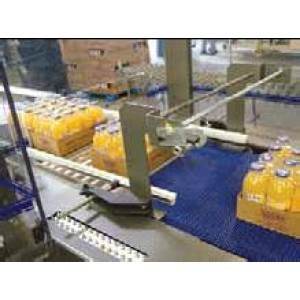

This rugged overlap shrink wrapper is equipped with time saving, low maintenance features. A standard chain driven Intralox plastic belt and live roller transfer conveyor does not require tedious tracking, and both are easier to clean than other conveyors. Product changeovers can be completed in less than 15 minutes with the BPTW's pre-programmed settings, adjustable infeed guides and side film rack.|
