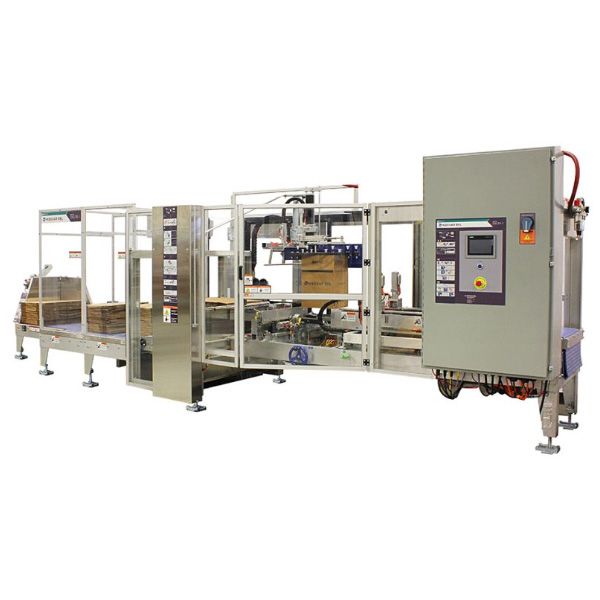

DELTA 1 Fully Automatic Case Former with MXM System
SKU DELTA 1
The flagship DELTA 1 offers continuous and ergonomic case loading with the patent-pending MXM (Modular Expandable Magazine) System - unprecedented levels of availability and uptime.
Continuous Non-Stop Performance
The MXM system can be continuously loaded on the fly for non-stop production. With features like a low load height and the DELTA 1's Self-Indexing Feature, case loading is quick, effortless and forgiving, resulting in a 150% increase in case loading rate compared to a traditional horizontal magazine. Furthermore, additional modules can be added to expand the capacity of the magazine, allowing for even greater ROI and flexibility to adapt to the needs of your business.
Need a live product specialist? Please call 800-277-7007Specifications
| Speed | up to 36 CPM (cases per minute) |
|---|---|
| Construction | Premium welded frame with corrosion resistant materials including anodized aluminum and stainless steel for a paint free construction |
| Adhesion | Available in tape or hot melt |
| Controls | HMI colour touchscreen interface |
| Country of Manufacturing | Designed and Built in Canada |
| Other | Servo Drives for maintenance free, efficient, precision movements |
| Type | Equipment |
Features

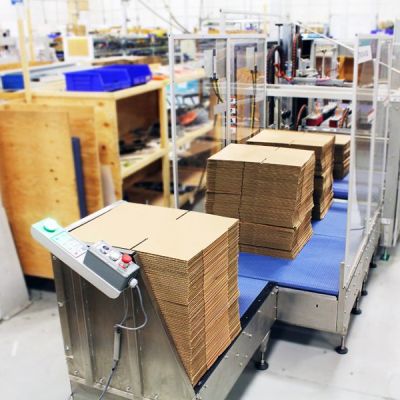

MXM System (Modular Expandable Magazine) Ergonomic low load height of 16" ensures quick and non-strenuous case loading. Expandable with additional modules to grow with the demands of your business.
Self-Indexing Ensures Every Case is Formed Perfectly Each case is tamped and re-centered prior to forming, ensuring every case is properly formed. This also allows for imperfect case loading, allowing cases to be "tossed in" with minimal training required.
3 Minute Size Change Over Total of only 4 tool-less changeover points for a quick and easy size change.
Wider Case Size Range The DELTA 1 has a much wider case size range than the standard WF platform especially in smaller range of cases.
1 Button Case Unloading Cases can be quickly and easily unloaded when required to decrease potential downtime.

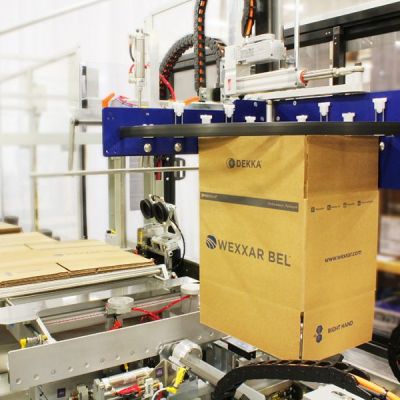

Patented Pin & Dome System Pin & Dome System mechanically opens each case, providing ultra-reliable case opening, squaring and forming.
WISE System Wexxar's intuitive operating system including on-board machine tuning and troubleshooting, pictures illustrating location of fault when error occurs and on-machine size change guides and color-coded size change handles
