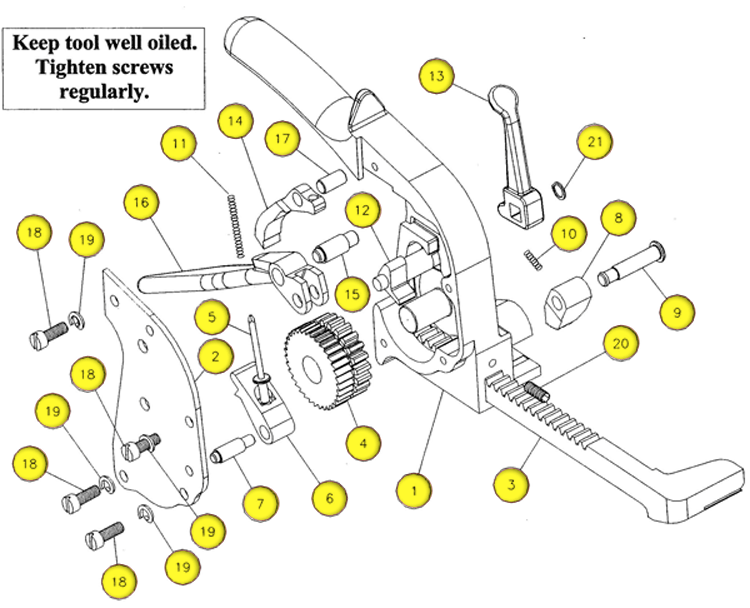

| Part # |
SKU |
Product Name |
Get Quote |
| 1 |
290462 |
Body |
|
| 2 |
290463 |
Cover Plate |
|
| 3 |
290464 |
Pusher Bar |
|
| 4 |
290465 |
Ratchet Wheel |
|
| 5 |
290466 |
Pop Rivet |
|
| 6 |
290467 |
Holding Pawl |
|
| 7 |
290468 |
Holding Pawl Shaft |
|
| 8 |
290469 |
Holding Dog |
|
| 9 |
290470 |
Holding Dog Shaft |
|
| 10 |
290471 |
Holding Dog Spring |
|
| 11 |
290483 |
Holding Pawl Spring |
|
| 12 |
290484 |
Release Shaft |
|
| 13 |
290485 |
Release Lever |
|
| 14 |
290486 |
Puller Pawl |
|
| 15 |
290487 |
Tension Lever Shaft |
|
| 16 |
290488 |
Tension Lever |
|
| 17 |
290489 |
Dowel Pin |
|
| 18 |
290490 |
Machine Screw |
|
| 19 |
290491 |
Lock Washer |
|
| 20 |
290492 |
Set Screw |
|
| 22 |
290493 |
Cotter Pin |
|
