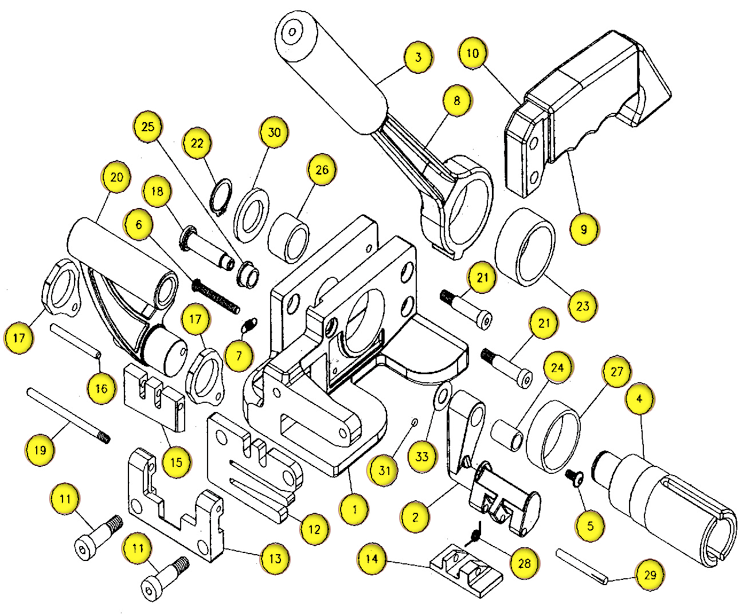

MIP-395

Part # SKU Product Name Get Quote
1 289889 Base
3 289891 Tension Lever Grip
4 289892 Windlass Shaft
5 289894 Gripper Pivot Pin Screw
6 289895 Gripper Pivot Spring Anchor
7 289896 Gripper Pivot Spring
8 289897 Tension Lever
9 289898 Handle Grip
10 289899 Handle
11 289902 Cutter Shoulder Screw
12 289904 Cutter Anvil
13 290162 Cutter Housing
14 198730 Gripper Foot
15 289930 Cutter Blade
16 290168 Cutter Blade Dowel
17 290167 Link
18 290172 Gripper Pivot Pin Screw
19 290182 Threaded Pin
20 290183 Cutter Handle
21 290233 Handle Shoulder Screw
22 290234 Retaining Ring
23 290235 Windlass Clutch
24 290236 Oilite Bearing
25 290237 Flanged Bearing
26 290238 Housing Clutch
27 290239 Windlass Oilite Bearing
28 290240 Gripper Foot Spring
29 290246 Gripper Foot Pin
30 290247 Washer
31 290248 O-Ring
33 290249 Gripper Foot Pivot Shim
