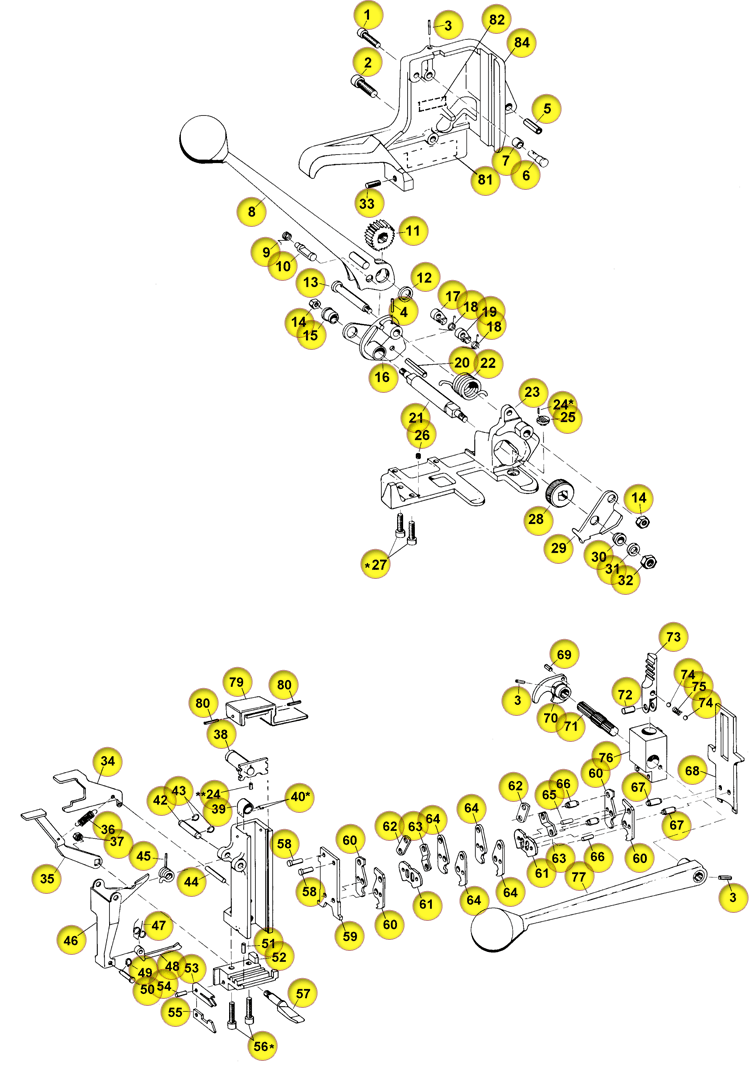

Part # SKU Product Name Get Quote
1 455 1/4-20X3/4 Shs
2 435 Cap Screw
3 224 Roll Pin
4 307 Roll Pin 1/8 Di
5 16135 Roll Pin
6 1373 Roller Pin
7 1372 Cam Roller
8 1354 Tension Handle Assy
9 1353 Drive Pawl Spr
10 1351 Driving Pawl
11 1347 Ratchet Gear
12 1387 Thrust Washer
13 1402 Support Shaft
14 167 Flexloc Nut Thin
15 1345 Gear Hsg Bush
16 1401 Gear Housing
17 1349 Long Hold Pawl
18 1348 Hold Pawl Spr
19 1350 Short Hold Pawl
20 400 Roll Pin
20 182985 1/4 X 1 Roll Pin
21 1346 Feed Whl Shaft
22 1352 Gear Hsg Spring
23 999001 Tensioner Frame
23 1395 Tensioner Frame Al-3
24 999002 Roll Pin, 1/8 X 1/4
25 1343 Gripper Plug
25 1362 Bronze Bushing
26 1384 Strap Latch Spr
27 459 Soc Cap Screw
28 1344 Feed Wheel
29 999003 Side Plate
29 1342 Side Plateal-3
30 9992221 Guide Bushing
31 357 Washer
32 356 Nut
33 9992222 Set Screw
34 9992223 Gripper Trigger
35 9992224 Gripper Lever
36 9992225 Gripper Spring
37 227 Flexloc Nut (Rep 072132)
38 9992226 Seal Pad Assem
39 1180 Magazine Spr
40 196 Drive Screw
41 999004 Magazine
41 1399 Magazine Al-38
42 9992227 Ejector Arm Pin
43 213 Truarc Ring
44 289 Roll Pin
45 9992228 Ej Arm Spring
46 9992229 Al Eject Lever
47 999005 Ejector Spring (Rep 020629)
48 9992230 Ejector
49 787 E Ring
50 9992231 Ejector Pin
51 326 Roll Pin 1/8 X 7/16
52 999006 Cutter Block
52 1393 Cutter Block Al
53 9992232 Strap Latch Sup
54 1198 Strap Guide Pin
55 9992233 Strap Latch 12
56 456 1/4-20X1 Shs
57 9992234 Hold Gripper A
58 9992235 Cutter Bl Pin
59 999007 Cutter Blade
59 1403 Cutter Blade Al
60 999008 Outer Jaw
61 999009 Notcher
62 9992236 Flat Toggl Link
63 9992237 Toggle Link
64 999010 Center Jaw
64 1359 Center Jaw Al-
65 1361 Notcher Pin
66 9992238 Toggle Link Pin
67 9992239 Jaw Pin
68 999011 Sealer Plate
68 1357 Sealer Plate Al-38
69 292 Roll Pin
70 9992240 Cam
71 9992241 Sealer Pinion
72 9992242 Toggle Pin
73 9992243 Rack
74 165 Steel Ball
75 163 Rack Lock Spr
76 1355 Jaw Support
77 9992244 Sealer Handle Assy
79 2474 Magazine Cap
80 207 Roll Pin
81 999012 Nameplate
81 19111 Nameplate Al-38
82 15901 Caution Sign
84 9992245 Sealer Frame
