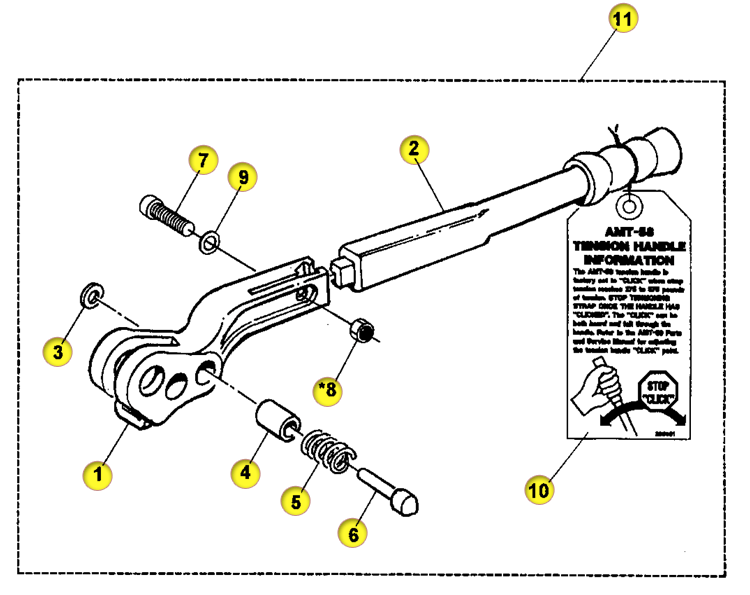

Tension Sensing Handle Assembly
| Part # |
SKU |
Product Name |
Get Quote |
| 1 |
455 |
1/4-20X3/4 Shs |
|
| 2 |
1328 |
Handle |
|
| 2A |
293 |
Set Screw |
|
| 3 |
224 |
Roll Pin |
|
| 4 |
1311 |
Cam Roller Pin |
|
| 5 |
201 |
Roll Pin, 1/8 X 7/8 |
|
| 6 |
1318 |
Shoulder Scr., 3/8 D X 3/8 L 5/16-18 X ? |
|
| 7 |
2708 |
Sealer Frame |
|
| 8 |
452 |
Socket Head Cap Screw, 5/16-18 X 1 |
|
| 9 |
16286 |
Ej Arm Washer |
|
| 10 |
21194 |
Information Tag |
|
| 33 |
1383 |
Set Screw, 1/4-20 X ? |
|
| 39A |
15512 |
Frame Shim |
|
| 50 |
1542 |
Ejector Lever |
|
| 51 |
281399 |
Seal Pad Assy |
|
| 52 |
1547 |
Ejector |
|
| 53 |
1636 |
Truarc |
|
| 54 |
1198 |
Strap Guide Pin |
|
| 55 |
1483 |
Trigger Pivot |
|
| 58 |
1479 |
Gripper Lever |
|
| 59 |
1178 |
Gripper Spring |
|
| 64 |
17452 |
Ejector Pin |
|
| 65 |
3528 |
Magazine |
|
| 66 |
299 |
Dowel Pin 3/16 X 7/8 |
|
| 67 |
3521 |
Cutter Block |
|
| 69 |
1156 |
Strap Latch, Fixed |
|
| 70 |
1158 |
Strap Latch (Movable) |
|
| 71 |
132 |
Socket Head Cap Screw |
|
| 72 |
1175 |
Holding Gripper |
|
| 98 |
21867 |
Nameplate |
|
| 104 |
197728 |
Warning Sign |
|
| 105 |
21185 |
Safety Sign |
|
