SCMH-58

REQUEST MORE INFO >

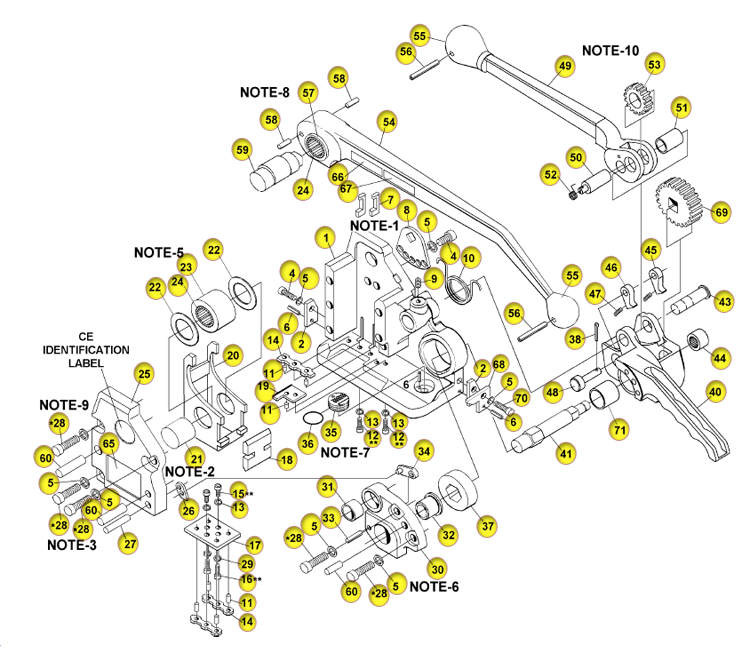

Part #	SKU	Product Name
1	157123	Base
2	157116	Inner Guide
4	513	Screw Sh M6X12
5	524	M6 Lockwasher
6	198669	Roll Pin 1/8 X 1/2 Long
7	51862	Lifter
8	281418	Locking Plate
9	2309	Soc Set Screw
10	106685	Energizing Spring
11	20352	Dowel Pin
12	19691	Soc Hd Cap Screw
13	2180	M3 Lockwasher (Zinc)
14	106681	Punch
15	157316	M3 X 6 Shcs
16	2177	Shcs, M4 X 8
17	290763	Die Support
18	85099	Cutter
19	197599	Cutter Anvil
20	157117	Carrier
21	281419	Cam Roller Pin
22	281420	Washer
23	197593	Cam Roller
24	157124	Needle Roller
25	290764	Sealer Cover
26	51868	Outer Guide
27	18968	5X24 Dowel Pin
28	143949	M6X20 Shcs
30	290766	Feedwheel Cover
31	51901	Du Bushing
32	106684	Bearing
33	19479	Dowel Pin
34	157114	Link
35	106682	Clutch Plug
36	18890	O-Ring
37	106683	Feedwheel
38	46	Cotter Pin, 3/32 X 3/4
40	290768	Gear Housing
41	157115	Feedwheel Shaft
43	197589	Pivot Pin
44	106686	Needle Bearing
45	157113	Long Retaining Pawl
46	197588	Short Retaining Pawl
47	222	Retaining Pawl Spring
48	290769	Pawl Pin
49	197590	Tension Handle
50	220	Tensioner Pawl
51	1322	Handle Bushing
52	221	Pawl Spring
53	141521	Tensioner Pinion
54	157122	Sealer Handle
55	519	Knob
56	520	Roll Pin 1/4 X 1 3/4
57	197597	Cam Spacer
58	19207	Dowel Pin 5X10 Lg
59	281421	Eccentric Shaft
60	107528	6X20 Dowel Pin
65	197580	Warning Sign
66	197591	Nameplate (Scmh-58)
67	14904	Safety Symbol
68	85089	Strap Deflector
69	1315	Tensioner Gear
70	20951	Socket Hd Cap Screw
71	197598	Du Bushing
