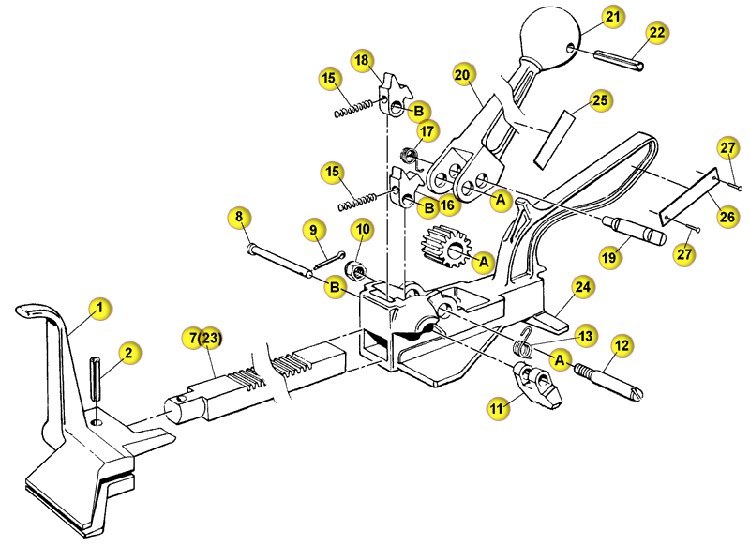

PH-2 RACK AND PINION TENSIONER
| Part # |
SKU |
Product Name |
Get Quote |
| 1 |
522 |
Breaking Nose Base |
|
| 2 |
507 |
Roll Pin, 1/4 Dia.X 1 1/8 Long |
|
| 7 |
16511 |
Rack |
|
| 8 |
515 |
Gripper Pin |
|
| 9 |
15866 |
Cotter Pin, 3/32 Dia. X 1/2 Long |
|
| 11 |
503 |
Gripper |
|
| 12 |
508 |
Handle Pivot Pin |
|
| 12 |
520 |
Roll Pin 1/4 X 1 3/4 |
|
| 13 |
498 |
Gripper Spring |
|
| 13 |
519 |
Knob |
|
| 14 |
506 |
Gear |
|
| 15 |
501 |
Pawl Spring |
|
| 16 |
500 |
Long Pawl |
|
| 17 |
505 |
Ratchet Spring |
|
| 18 |
499 |
Short Pawl |
|
| 19 |
504 |
Pawl |
|
| 20 |
518 |
Handle |
|
| 23 |
16517 |
Long Rack (Optional) |
|
| 24 |
16520 |
Slide Housing |
|
| 25 |
3133 |
Warning Label |
|
| 27 |
15874 |
Drive Screw |
|
| 117 |
128 |
1 1/2 x 1 1/2 Square / White Poly - Quote no. 128 |
|
