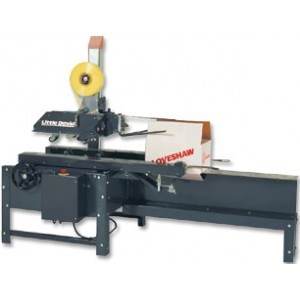

Loveshaw SP-304 Case Sealer
SKU IPS-SP-304
This side belt driven tape sealer is recommended for dimensionally unstable boxes, lightweight boxes and boxes as narrow as 3-1/4". Can be used for setting up empty boxes with bottom tape only.
Need a live product specialist? Please call 800-277-7007Benefits
3 flap folder
Simple operation
Proven side belt
Bottom major flap folding bars
Interchangeable tape cartridges
Narrow profile "T-rail" table
Top squeezer rollers
Simple operation
Proven side belt
Bottom major flap folding bars
Interchangeable tape cartridges
Narrow profile "T-rail" table
Top squeezer rollers
Features
Reliable Performance - Warranty:
2 Year Gear Motors
2 Years Gear Reducer
3 Years Cartridge*
*Moving and wear parts are not included. Other restrictions may apply.
Flexible: Tapes boxes from 4-1/2" (114mm) to 24" (610mm) in height
Easy Operation:
Plug in operation
Minimal operator training required
Sealed drive system
CaseLocker ST tape cartridge requires no lubrication
Ergonomic design alleviates twisting motion known to cause carpal tunnel syndrome
Self-centering belts
Safe:
Patented single mast design allows clear access
Knife guard system of the CaseLocker ST tape cartridge only allows the blade to be exposed only when the rollers have been depressed.
2 Year Gear Motors
2 Years Gear Reducer
3 Years Cartridge*
*Moving and wear parts are not included. Other restrictions may apply.
Flexible: Tapes boxes from 4-1/2" (114mm) to 24" (610mm) in height
Easy Operation:
Plug in operation
Minimal operator training required
Sealed drive system
CaseLocker ST tape cartridge requires no lubrication
Ergonomic design alleviates twisting motion known to cause carpal tunnel syndrome
Self-centering belts
Safe:
Patented single mast design allows clear access
Knife guard system of the CaseLocker ST tape cartridge only allows the blade to be exposed only when the rollers have been depressed.
Machine Layout
Options
Casters
Leg adjustments
Removable "T" rail pack table
Rear standard or roller pack table
Top hold down sled (for semi-automatic case former model)
High mast for box heights to 34"
Leg adjustments
Removable "T" rail pack table
Rear standard or roller pack table
Top hold down sled (for semi-automatic case former model)
High mast for box heights to 34"
Specifications
| Type | Semiautomatic Uniform |
|---|---|
| Specifications (long) | Power Requirements |
| 110 VAC, single phase, 60 cycle, 8.0 Amps | |
| Operating Speed | |
| Continuous belt drive; 72' per minute (18.3 m/min.) | |
| (production rate depends on box size & operator dexterity) | |
| Weight | 300 lbs. (136 kg) uncrated |
| Case Capacity | (with 2" wide CaseLocker ST™ Cartridge) |
| Minimum/ Maximum | |
| Height | 4-1/2" (114mm) Height |
| Width | 4-1/2" (114mm) Width |
| Length | 6" (152mm) Length |
| *Certain Length x Width x Height combinations may not process due to unstable conveying conditions | |
