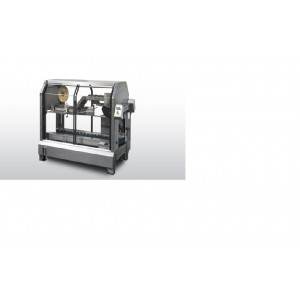

Pearson CS40-T Case Sealer

SKU IPS-CS40-T
New Case Sealer top seals cases atspeeds up to 40 CPM. Pearson Packaging Systems CS40-T Case Sealer top seals cases with pressure sensitive tape at speeds up to 40 cpm for the full standard case range. The CS40-T is available in mild steel or stainless steel construction. The CS40-T is a fully guarded, rugged, compact, and automatic machine capable of top sealing a wide range of RSC, FOL & CSSC corrugated cases. The side belt drive with its Compensating Independent Roller System (patented) provides smooth and reliable case transfer for cases up to 29.5 Kg (65 lbs). The Synchronous Drive System eliminates the need for complicated chain tensioning or multiple shafts and gear reducers. The CS40-T utilizes continuous motion to achieve 40 cpm across the full standard case range. Faster case speeds are possible for shorter length cases. The CS40-T also utilizes no tool quick change over to different case sizes. Filled cases enter the machine with a minimum of 380mm (15 in) separation. Minor & major flaps are folded and a Dekka® tape head applies tape to the case. The CS40-T comes standard with 24VDC control voltage, UL® Listed Control Panel, Allen- Bradley® PLC, PackML compliance and non-lube bearings. Like all Pearson products,the CS40-T is backed by Pearson's experienced factory professionals as well as one of the largest teams of PMMI certified regional service technicians in the industry, available 24-hours a day, 7-days a week - worldwide.
- +
Need a live product specialist?  Please call 800-277-7007

Features

Features and Benefits

Compact, continuous motion case sealer
Mild or stainless steel construction
No tool quick changeover and externally accessible adjustments
Compensating Independent Roller System for smooth and reliable case transfer through the machine (patented)
Synchronous Drive System standard
Allen-Bradley® PLC
Allen-Bradley® PanelView
PackML compliant standard
Servo controlled flap kicker
Ful perimeter guard package with safety interlocks
Dekka® Pressure Sensitive Tape Head
NEMA 4 electrical enclosure

Machine Layout

Specifications

Type Automatic Random Machines
