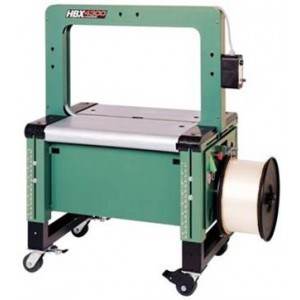

Signode HBX4300 Arch Chuted Strapping Machines
SKU IPS-HBX-4300
The Signode HBX-4300 semi automatic strapping machine is designed for general duty strapping applications. The HBX-4300 provides high-speed, jam-resistant operation and cycles up to 70 straps per minute, making it the fastest plastic strapping machine in its class.
The HBX-4300 is also available in Large Frame and Small Anvil models as well as an automatic model, the HBX-4330.
Need a live product specialist? Please call 800-277-7007Capabilities
HBX-4300 load capabilities
Minimum Maximum
Package size 4"W x 4"H Small frame
16"W x 10"H Extra small chute
20"W x 15"H Small chute
28"W x 20"H Medium chute*
33"W x 30"H Large chute
Large frame
48"W x 20"H Small chute
48"W x 48"H Medium chute
Package weight NA 100 lbs
*Available in a stainless steel model.
Minimum Maximum
Package size 4"W x 4"H Small frame
16"W x 10"H Extra small chute
20"W x 15"H Small chute
28"W x 20"H Medium chute*
33"W x 30"H Large chute
Large frame
48"W x 20"H Small chute
48"W x 48"H Medium chute
Package weight NA 100 lbs
*Available in a stainless steel model.
Features
HBX-4300 Features
Patented, jam-resistant technology
The HBX-4300 is designed to deliver the most jam-resistant technology available, automatically correcting misstrap occurrences without operator intervention.
Lubrication-free operation
The HBX-4300's self-lubricating design provides excellent durability and maintenance-free operation.
Fully accessible strap path
The HBX-4300's machine and strapping guides are easily opened, providing complete access to the strap path without using any tools.
Patented automatic cut-off and refeed option
The HBX-4300 can be equipped with our patented automatic cut-off and refeed option which automatically ejects misfed strap, rethreads itself and continues strapping without operator intervention.
Patented, jam-resistant technology
The HBX-4300 is designed to deliver the most jam-resistant technology available, automatically correcting misstrap occurrences without operator intervention.
Lubrication-free operation
The HBX-4300's self-lubricating design provides excellent durability and maintenance-free operation.
Fully accessible strap path
The HBX-4300's machine and strapping guides are easily opened, providing complete access to the strap path without using any tools.
Patented automatic cut-off and refeed option
The HBX-4300 can be equipped with our patented automatic cut-off and refeed option which automatically ejects misfed strap, rethreads itself and continues strapping without operator intervention.
Specifications
| Type | Arch / Chuted Strapping Machines |
|---|
