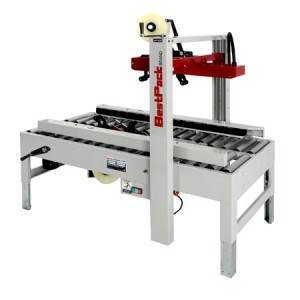

BestPack MSL Adjustable Case Sealer
SKU IPS-MSL
The BestPack MSL is an operator-fed, adjustable, carton-sealing machine designed to cater to the needs of applications with cartons of low height. The MSL22 taper can seal cartons that are 2.3" high rather than the typical 3.9" height of other MS series tapers.
Need a live product specialist? Please call 800-277-7007Specifications
| Standard Equipment | |
|---|---|
| Exclusive Pop-out pressure sensitive "high speed" tape head with patented tab adjustment and noise reduction arm | |
| Operation Manual | |
| Type | Semiautomatic Uniform |
| Specifications (long) | Machine & Carton Specifications |
| Power Requirements | 110 Volts 60 Hz |
| Speed | Up to 40 cartons/minute |
| Tape Head | Standard |
| Shipping Weight | 400 lbs |
| Machine Dimensions ¹ | View/Compare Machine Dimensions |
| Carton Min/Max Range² | View/Compare Carton Ranges |
| ¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications. | |
| ² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements. | |
Features
Features
Two Side Belts
Adjustable Bed Height from 24.5" to 30.0"
Width/Height Adjustment on either side of machine
Extra 4" Carton Height Available on Upper Assembly
Box Top Compression Unit
Tape Roll Lengths: 1000yd, 1500yd, 2000yd.
Heavy Duty Frame
UL Approved Electrical Parts
3" Model Capable of Interchanging 2" or 3" Tape Heads
Two Side Belts
Adjustable Bed Height from 24.5" to 30.0"
Width/Height Adjustment on either side of machine
Extra 4" Carton Height Available on Upper Assembly
Box Top Compression Unit
Tape Roll Lengths: 1000yd, 1500yd, 2000yd.
Heavy Duty Frame
UL Approved Electrical Parts
3" Model Capable of Interchanging 2" or 3" Tape Heads
Machine Layout
Options
Optional Equipment
Infeed/Exit Conveyor with Carton Stabilizer
Locking heavy-duty caster (4 casters)
Stainless steel
Spare Parts Kit
Infeed/Exit Conveyor with Carton Stabilizer
Locking heavy-duty caster (4 casters)
Stainless steel
Spare Parts Kit
