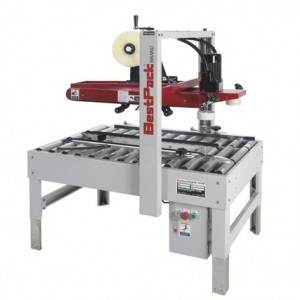

BestPack MTLW Case Sealers
SKU IPS-MTLW
The BestPack MTLW Series are Semi-Automatic Adjustable Tape Carton Sealers engineered for economical, effective operator-fed closure applications. The MTLW's air-driven brushes tuck the leading and trailing tabs that hang over the bottom of the carton. These brushes facilitate top sealing of cartons from a min. height of 1/2" high, 3" lower than the MT's min. height of 3.5".
Need a live product specialist? Please call 800-277-7007Specifications
| Standard Equipment | |
|---|---|
| Exclusive Pop-out pressure sensitive "high speed" tape head with patented tab adjustment and noise reduction arm | |
| Operation Manual | |
| Type | Semiautomatic Uniform |
| Specifications (long) | Machine & Carton Specifications |
| Power Requirements | 110 Volts 60 Hz |
| Air Requirements | 60 - 75 PSI, 2-3 CFM |
| Speed | Up to 40 cartons/minute |
| Tape Head | Standard |
| Shipping Weight | 388 - 416 lbs |
| Machine Dimensions ¹ | View/Compare Machine Dimensions |
| Carton Min/Max Range² | View/Compare Carton Ranges |
| ¹ Machine weight and dimensions may vary depending on carton sizes. Please view brochure for complete machine specifications. | |
| ² Carton ranges are fully customizable. Please inquire with our sales team with your specific requirements. | |
Features
Features
Designed for Uniform Applications
Four Belts - 2 Top and 2 Bottom Belts
Air-driven brushes that allow for low taping
Low Profile
Adjustable Bed Height from 24.5" to 30.75"
Extra 4" Carton Height Adjustment Available on Upper Assembly
Height Adjustment on either side of machine
Box Top Compression Unit
Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Rugged Construction
Guide Rail Centering Mechanism
Capable of Interchanging 2" or 3" Tape Heads
Upper Side Compression Rollers
Electrical Box Convertible - Left or Right Side
Designed for Uniform Applications
Four Belts - 2 Top and 2 Bottom Belts
Air-driven brushes that allow for low taping
Low Profile
Adjustable Bed Height from 24.5" to 30.75"
Extra 4" Carton Height Adjustment Available on Upper Assembly
Height Adjustment on either side of machine
Box Top Compression Unit
Tape Roll Lengths: 1000 yd., 1500 yd., 2000 yd.
Heavy Duty Frame
UL Approved Electrical Parts
Rugged Construction
Guide Rail Centering Mechanism
Capable of Interchanging 2" or 3" Tape Heads
Upper Side Compression Rollers
Electrical Box Convertible - Left or Right Side
Options
Optional Equipment
Infeed/Exit Conveyor
Carton Stabilizer
Locking heavy-duty caster (4 casters)
High Speed Motor Upgrade (Up to 125 ft./min.)
Motorized Height Adjustment
Interlock Safety Gates Stainless Steel
Low or No Taper Sensor
Stainless steel
Spare Parts Kit
Infeed/Exit Conveyor
Carton Stabilizer
Locking heavy-duty caster (4 casters)
High Speed Motor Upgrade (Up to 125 ft./min.)
Motorized Height Adjustment
Interlock Safety Gates Stainless Steel
Low or No Taper Sensor
Stainless steel
Spare Parts Kit
